CSS LABORATORIES, INC.
MB-6863
|
Processor |
Pentium Pro |
|
Processor Speed |
180/200/266MHz |
|
Chip Set |
Intel |
|
Video Chip Set |
None |
|
Maximum Onboard Memory |
512MB |
|
Maximum Video Memory |
None |
|
Cache |
256/512KB (located on Pentium Pro CPU) |
|
BIOS |
Award |
|
Dimensions |
330mm x 218mm |
|
I/O Options |
32-bit PCI slots (5), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, VRM connectors (2), USB connectors (2) |
|
NPU Options |
None |
|

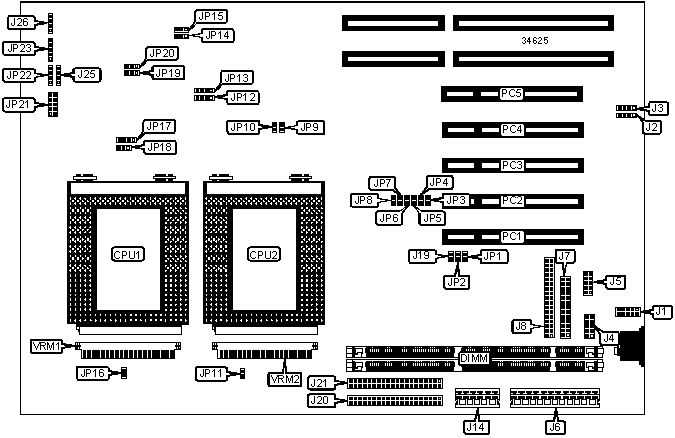

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse/keyboard interface |
J1 |
Speaker |
J26 |
|
USB connector |
J2 |
Chassis fan power |
JP11 |
|
USB connector |
J3 |
IR connector |
JP12 |
|
Serial port 1 |
J4 |
External battery |
JP13 |
|
Serial port 2 |
J5 |
Chassis fan power |
JP16 |
|
5v power |
J6 |
Front panel connector |
JP21 |
|
Parallel port |
J7 |
Reset switch |
JP22/pins 1 & 2 |
|
Floppy drive interface |
J8 |
Turbo LED |
JP22/pins 3 & 4 |
|
3.3v power |
J14 |
Power LED & keylock |
JP23 |
|
IDE interface 1 |
J20 |
32-bit PCI slots |
PC1 – PC5 |
|
IDE interface 2 |
J21 |
VRM connector 1 |
VRM1 |
|
IDE interface LED |
J25 |
VRM connector 2 |
VRM2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
|
» |
Factory configured - do not alter |
J19 |
Unidentified |
|
» |
Factory configured - do not alter (DBX EXTSMI) |
JP7 |
Unidentified |
|
» |
Factory configured - do not alter |
JP8 |
Unidentified |
|
» |
Factory configured - do not alter |
JP17 |
Unidentified |
|
» |
Factory configured - do not alter |
JP18 |
Unidentified |
|
» |
Factory configured - do not alter |
JP19 |
Unidentified |
|
» |
ISA bus speed select /4 |
JP20 |
Pins 2 & 3 closed |
|
ISA bus speed select /3 |
JP20 |
Pins 1 & 2 closed | |
|
DIMM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
8MB |
(1) 1M x 64 |
None |
|
16MB |
(1) 2M x 64 |
None |
|
16MB |
(1) 1M x 64 |
(1) 1M x 64 |
|
24MB |
(1) 2M x 64 |
(1) 1M x 64 |
|
32MB |
(1) 4M x 64 |
None |
|
32MB |
(1) 2M x 64 |
(1) 2M x 64 |
|
40MB |
(1) 4M x 64 |
(1) 1M x 64 |
|
48MB |
(1) 4M x 64 |
(1) 2M x 64 |
|
64MB |
(1) 8M x 64 |
None |
|
64MB |
(1) 4M x 64 |
(1) 4M x 64 |
|
72MB |
(1) 8M x 64 |
(1) 1M x 64 |
|
80MB |
(1) 8M x 64 |
(1) 2M x 64 |
|
96MB |
(1) 8M x 64 |
(1) 4M x 64 |
|
128MB |
(1) 16M x 64 |
None |
|
128MB |
(1) 8M x 64 |
(1) 8M x 64 |
|
136MB |
(1) 16M x 64 |
(1) 1M x 64 |
|
DIMM CONFIGURATION (CON’T) | ||
|
Size |
Bank 0 |
Bank 1 |
|
144MB |
(1) 16M x 64 |
(1) 2M x 64 |
|
160MB |
(1) 16M x 64 |
(1) 4M x 64 |
|
192MB |
(1) 16M x 64 |
(1) 8M x 64 |
|
256MB |
(1) 16M x 64 |
(1) 16M x 64 |
|
256MB |
(1) 32M x 64 |
None |
|
264MB |
(1) 32M x 64 |
(1) 1M x 64 |
|
272MB |
(1) 32M x 64 |
(1) 2M x 64 |
|
288MB |
(1) 32M x 64 |
(1) 4M x 64 |
|
320MB |
(1) 32M x 64 |
(1) 8M x 64 |
|
384MB |
(1) 32M x 64 |
(1) 16M x 64 |
|
512MB |
(1) 32M x 64 |
(1) 32M x 64 |
|
CACHE CONFIGURATION |
|
Note: 256KB/512KB cache is located on the Pentium Pro CPU. |
|
CPU SPEED SELECTION | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP1 |
JP2 |
JP3 |
JP4 |
|
180MHz |
60MHz |
3x |
Closed |
Open |
Closed |
Open |
|
200MHz |
66MHz |
3x |
Open |
Closed |
Closed |
Open |
|
266MHz |
66MHz |
4x |
Open |
Closed |
Closed |
Closed |
|
CPU SPEED SELECTION (CON’T) | ||||||
|
CPU speed |
Clock speed |
Multiplier |
JP5 |
JP6 |
JP9 |
JP10 |
|
180MHz |
60MHz |
3x |
Closed |
Closed |
Open |
Closed |
|
200MHz |
66MHz |
3x |
Closed |
Closed |
Closed |
Open |
|
266MHz |
66MHz |
4x |
Open |
Closed |
Closed |
Open |
|
FLASH BIOS SELECTION | |||
|
Setting |
JP14 |
JP15 | |
| » |
Enabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
|
Disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
