Processor	Unidentified
Processor Speed	Unidentified
Chip Set	Unidentified
Video Chip Set	Unidentified
Maximum Onboard Memory	384MB (EDO supported)
Maximum Video Memory	Unidentified
Cache	Unidentified
BIOS	AMI
Dimensions	305mm x 244mm
I/O Options	32-bit PCI slots (5), floppy drive interface, Ultra Wide SCSI interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA feature connector, VGA port, CPU card slots (2), memory slots (2)
NPU Options	Unidentified

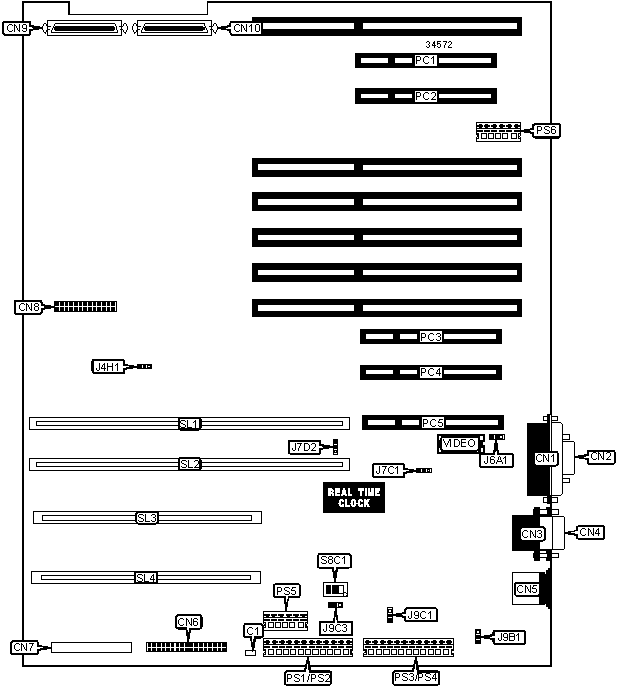

CONNECTIONS
Purpose	Location	Purpose	Location
Power supply enable connector	C1	Ultra Wide SCSI interface	CN10
Parallel port	CN1	32-bit PCI slots	PC1 – PC5
VGA port	CN2	6-pin power connector	PS1/PS2
Serial port 1	CN3	12-pin power connector	PS3/PS4
Serial port 2	CN4	3.3v power connector	PS5
PS/2 mouse port	CN5	3.3v power connector	PS6
Floppy drive interface	CN6	CPU card slot 1	SL1
Power fan/control board connector	CN7	CPU card slot 2	SL2
VGA feature connector	CN8	Memory slot 2	SL3
Ultra Wide SCSI interface	CN9	Memory slot 1	SL4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Test development enabled	J4H1	Pins 1 & 2 closed
	Test development disabled	J4H1	Pins 2 & 3 closed
»	Video sleep register select 3C3	J6A1	Pins 2 & 3 closed
	Video sleep register select 46E8	J6A1	Pins 1 & 2 closed
»	Program boot block disabled	J7C1	Pins 1 & 2 closed
	Program boot block enabled	J7C1	Pins 2 & 3 closed
»	Boot block update disabled	J7D2	Pins 2 & 3 closed
	Boot block update enabled	J7D2	Pins 1 & 2 closed
»	Power control enabled	J9C3	Pins 1 & 2 closed
	Power control disabled	J9C3	Pins 2 & 3 closed
»	CMOS memory normal operation	S8C1/1	Off
	CMOS memory clear	S8C1/1	On
»	Password normal operation	S8C1/2	Off
	Password clear	S8C1/2	On
»	Flash BIOS write enabled	S8C1/3	On
	Flash BIOS write disabled	S8C1/3	Off

SIMM CONFIGURATION

Note: Board accepts up to 384MB of memory. The configuration is unidentified.

CACHE CONFIGURATION

Note: The location and size of the cache is unidentified.

VIDEO MEMORY CONFIGURATION

Note: The video memory configuration is unidentified.

FLOPPY DRIVE SELECTION
Setting		J9B1	J9C1
»	1.44MB	Pins 1 & 2 closed	Pins 1 & 2 closed
	2.88MB	Pins 2 & 3 closed	Pins 2 & 3 closed
