COMPAQ COMPUTER CORPORATION

PROLIANT 2500

Processor

Pentium Pro

Processor Speed

120/133/150/166/180/200/210/233/240/266/270/300/330/ 333/366MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

1GB (EDO supported)

Maximum Video Memory

Unidentified

Cache

256/512KB (located on Pentium Pro CPU)

BIOS

Unidentified

Dimensions

220mm x 220mm

I/O Options

Unidentified

NPU Options

None

CONNECTIONS

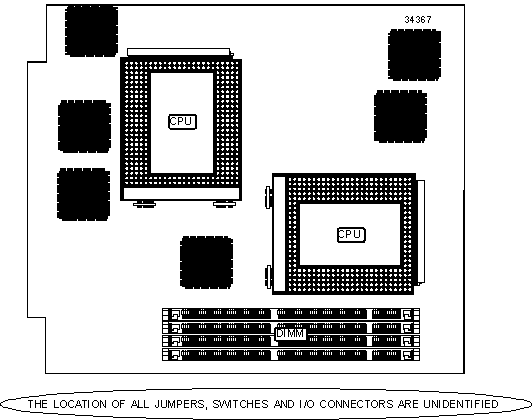

Note: The location and types of I/O options are unidentified.

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

On board video enabled

S1/1

Off



On board video disabled

S1/1

On

»

Configuration lock disabled

S1/2

Off



Configuration lock enabled

S1/2

On

»

System installed in a tower chassis

S1/3

Off



System installed in a rack mount

S1/3

On

»

Floppy drive boot disabled

S1/4

Off



Floppy drive boot enabled

S1/4

On

»

Password normal operation

S1/5

Off



Password clear

S1/5

On

»

CMOS memory normal operation

S1/6

Off



CMOS memory clear

S1/6

On

DIMM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

32MB

(1) 4M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

64MB

(1) 8M x 64

None

None

None

96MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

None

128MB

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

(1) 4M x 64

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

(1) 16M x 64

None

None

None

192MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

None

256MB

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

None

None

256MB

(1) 32M x 64

None

None

None

384MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

None

512MB

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

(1) 16M x 64

512MB

(1) 32M x 64

(1) 32M x 64

None

None

768MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

None

1024MB

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

(1) 32M x 64

Note: Board accepts EDO memory.

CACHE CONFIGURATION

Note: 256KB/512KB cache is located on the Pentium Pro CPU.

VIDEO MEMORY CONFIGURATION

Note: The size and location of the video memory is unidentified.

CPU SPEED SELECTION

CPU speed

Clock speed

SW1/1

SW1/2

SW1/3

SW1/4

SW2/1

120MHz

60MHz

On

On

On

On

On

133MHz

66MHz

On

On

On

On

On

150MHz

60MHz

On

On

On

Off

On

166MHz

66MHz

On

On

On

Off

On

180MHz

60MHz

On

On

Off

On

On

200MHz

66MHz

On

On

Off

On

On

210MHz

60MHz

On

On

Off

Off

On

233MHz

66MHz

On

On

Off

Off

On

240MHz

60MHz

On

Off

On

On

On

266MHz

66MHz

On

Off

On

On

On

270MHz

60MHz

On

Off

On

Off

On

300MHz

60MHz

On

Off

Off

On

On

300MHz

66MHz

On

Off

On

Off

On

330MHz

60MHz

On

Off

Off

Off

On

333MHz

66MHz

On

Off

Off

On

On

366MHz

66MHz

On

Off

Off

Off

On

CPU SPEED SELECTION (CON’T)

CPU speed

Clock speed

SW2/2

SW2/3

SW2/4

SW3/1

SW3/2

120MHz

60MHz

On

On

On

On

Off

133MHz

66MHz

On

On

On

Off

On

150MHz

60MHz

On

On

Off

On

Off

166MHz

66MHz

On

On

Off

Off

On

180MHz

60MHz

On

Off

On

On

Off

200MHz

66MHz

On

Off

On

Off

On

210MHz

60MHz

On

Off

Off

On

Off

233MHz

66MHz

On

Off

Off

Off

On

240MHz

60MHz

Off

On

On

On

Off

266MHz

66MHz

Off

On

On

Off

On

270MHz

60MHz

Off

On

Off

On

Off

300MHz

60MHz

Off

Off

On

On

Off

300MHz

66MHz

Off

On

Off

Off

On

330MHz

60MHz

Off

Off

Off

On

Off

333MHz

66MHz

Off

Off

On

Off

On

366MHz

66MHz

Off

Off

Off

Off

On

SCSI ID SELECTION

SCSI ID

ID0

ID1

ID2

0

Off

Off

Off

1

On

Off

Off

2

Off

On

Off

3

On

On

Off

4

Off

Off

On

5

On

Off

On

6

Off

On

On

Note: Duplexed hot-pluggable uses ID 4 & 5. Hot-pluggable uses ID 5 & 6. Non hot-pluggable uses 0 - 6.
