CORDATA TECHNOLOGIES

ATP

Processor

80286

Processor Speed

8MHz

Chip Set

Unidentified

Video Chip Set

None

Maximum Onboard Memory

640KB

Maximum Video Memory

None

Cache

None

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

Floppy drive interface

NPU Options

80287

CONNECTIONS

Purpose

Location

Floppy drive interface

J14

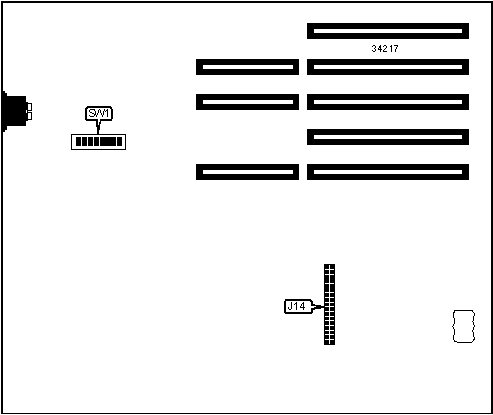

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Floppy drives installed 1 drive

SW1/1

On



Floppy drives installed 2 drives

SW1/1

Off

»

Floppy drive A density select quad

SW1/2

Off



Floppy drive A density select double

SW1/2

On

»

Floppy drive B density select quad

SW1/3

Off



Floppy drive B density select double

SW1/3

On

»

Monitor type select color

SW1/4

On



Monitor type select monochrome

SW1/4

Off

»

Factory configured - do not alter

SW1/5

N/A

»

Factory configured - do not alter

SW1/6

N/A

»

Factory configured - do not alter

SW1/7

N/A

»

Factory configured - do not alter

SW1/8

N/A

DRAM CONFIGURATION

Note: Board is installed with 512KB memory. It can be upgraded to 640KB. The location and chip sizes are unidentified.
