DIGITAL EQUIPMENT CORPORATION

P2120 CE

Processor

8088

Processor Speed

4.77/10MHz

Chip Set

Unidentified

Video Chip Set

ATI

Maximum Onboard Memory

768KB

Maximum Video Memory

Unidentified

Cache

None

BIOS

Unidentified

Dimensions

254mm x 218mm

I/O Options

Floppy drive interface, IDE interface, parallel port, serial ports (2), VGA port, riser slot

NPU Options

8087

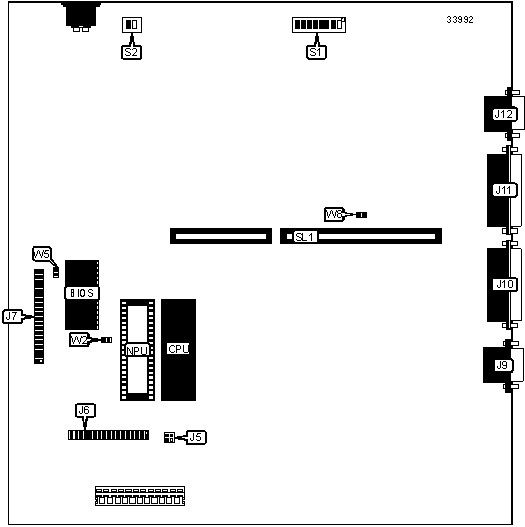

CONNECTIONS

Purpose

Location

Purpose

Location

Floppy/hard drive power interface

J5

Serial port

J10

Floppy drive interface

J6

Parallel port

J11

IDE interface

J7

VGA port

J12

Serial port

J9

Riser slot

SL1

USER CONFIGURABLE SETTINGS

Function

Label

Position



NPU not installed

S1/1

On



NPU installed

S1/1

Off



One floppy drive installed

S1/2

On



Two floppy drives installed

S1/2

Off



Parity chips installed

S1/3

On



Parity chips not installed

S1/3

Off



On board video enabled

S1/4

On



On board video disabled

S1/4

Off



Parallel port enabled

S1/5

On



Parallel port disabled

S1/5

Off



Serial port 2 enabled

S1/6

On



Serial port 2 disabled

S1/6

Off



Serial port 1 enabled

S1/7

On



Serial port 1 disabled

S1/7

Off



IDE interface enabled

S1/8

On



IDE interface disabled

S1/8

Off



Monochrome mode using a color monitor

S2/1

On



Color mode using a monochrome monitor

S2/1

Off



Monitor type select color

S2/2

On



Monitor type select monochrome

S2/2

Off

»

Manufacturing mode disabled

W8

Open



Manufacturing mode enabled

W8

Closed

DRAM CONFIGURATION

Note: Board is factory installed with 768KB and is not configurable.

BIOS SELECTION

Size

W2

W5

8KB

Open

Open

16KB

Open

Open

32KB

Open

Closed

64KB

Closed

Closed
