DIAMOND FLOWER, INC.

G586IPC (REV. D+)

Processor

CX M1/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

256MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

250mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, game port, game interface, green PC connector, IDE interface, IDE interfaces (2), SCSI connector, parallel port, PS/2 mouse port, PS/2 mouse interface, serial ports (2), serial port, tape drive interface, VGA feature connector, VGA port, riser slot, cache slot, IR connector, VRM connector, USB connectors (2)

NPU Options

None

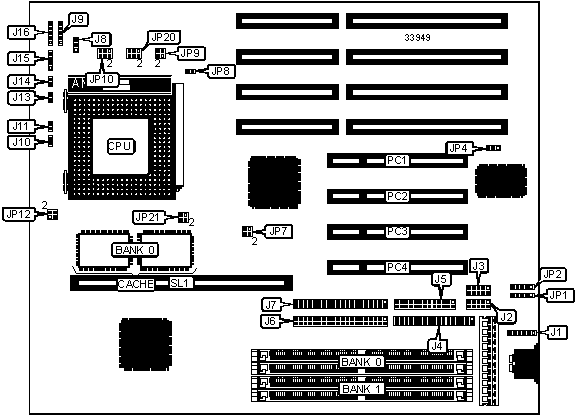

CONNECTIONS

Purpose

Location

Purpose

Location

PS/2 mouse interface

J1

Green PC LED

J11

Serial port 1

J2

Green PC connector

J13

Serial port 2

J3

Reset switch

J14

Floppy drive interface

J4

Speaker

J15

Parallel port

J5

Power LED & keylock

J16

IDE interface 1

J6

USB connector 1

JP1

IDE interface 2

J7

USB connector 2

JP2

Chassis fan power

J8

32-bit PCI slots

PC1 - PC4

IR connector

J9

Cache slot

SL1

IDE interface LED

J10





USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Monitor type select color

JP4

Pins 1 & 2 closed



Monitor type select monochrome

JP4

Pins 2 & 3 closed

»

CMOS memory normal operation

JP8

Open



CMOS memory clear

JP8

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(2) 1M x 36

None

16MB

(2) 2M x 36

None

16MB

(2) 1M x 36

(2) 1M x 36

24MB

(2) 2M x 36

(2) 1M x 36

32MB

(2) 4M x 36

None

32MB

(2) 2M x 36

(2) 2M x 36

40MB

(2) 4M x 36

(2) 1M x 36

48MB

(2) 4M x 36

(2) 2M x 36

64MB

(2) 8M x 36

None

64MB

(2) 4M x 36

(2) 4M x 36

72MB

(2) 8M x 36

(2) 1M x 36

80MB

(2) 8M x 36

(2) 2M x 36

96MB

(2) 8M x 36

(2) 4M x 36

128MB

(2) 8M x 36

(2) 8M x 36

128MB

(2) 16M x 36

None

136MB

(2) 16M x 36

(2) 1M x 36

144MB

(2) 16M x 36

(2) 2M x 36

160MB

(2) 16M x 36

(2) 4M x 36

192MB

(2) 16M x 36

(2) 8M x 36

256MB

(2) 16M x 36

(2) 16M x 36

Note: Board accepts EDO memory. Board also accepts x 32 SIMMs. Banks are interchangeable.

CACHE CONFIGURATION

Size

Bank 0

SL1

256KB

(2) 32K x 32

None

512KB

(2) 32K x 32

256KB module installed

512KB

(2) 64K x 32

Not installed

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP7

JP12

120MHz

50MHz

2x

1 & 2, 3 & 4

1 & 2

133MHz

55MHz

2x

Open

1 & 2

150MHz

60MHz

2x

1 & 2

1 & 2

166MHz

66MHz

2x

3 & 4

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)

CPU speed

Clock speed

Multiplier

JP7

JP12

75MHz

50MHz

1.5x

1 & 2, 3 & 4

Open

90MHz

60MHz

1.5x

1 & 2

Open

100MHz

66MHz

1.5x

3 & 4

Open

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP7

JP12

75MHz

50MHz

1.5x

1 & 2, 3 & 4

Open

90MHz

60MHz

1.5x

1 & 2

Open

100MHz

66MHz

1.5x

3 & 4

Open

120MHz

60MHz

2x

1 & 2

1 & 2

133MHz

66MHz

2x

3 & 4

1 & 2

150MHz

60MHz

2.5x

1 & 2

1 & 2, 3 & 4

166MHz

66MHz

2.5x

3 & 4

1 & 2, 3 & 4

200MHz

66MHz

3x

3 & 4

3 & 4

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION

Voltage

JP9

JP10

JP20

JP21



2.5v

3 & 4

1 & 3, 2 & 4

1 & 2

1 & 2, 3 & 4



2.8v

3 & 4

1 & 3, 2 & 4

3 & 4

1 & 2, 3 & 4



2.9v

3 & 4

1 & 3, 2 & 4

5 & 6

1 & 2, 3 & 4

»

3.3v

3 & 4

3 & 5, 4 & 6

3 & 4

1 & 2, 3 & 4



3.5v

1 & 2

3 & 5, 4 & 6

3 & 4

1 & 2, 3 & 4

Note: Pins designated should be in the closed position.
