DTK COMPUTER, INC.

LS2016 NEAT

Processor

80286 (exact location unidentified)

Processor Speed

16MHz

Chip Set

Neat

Video Chip Set

None

Maximum Onboard Memory

4MB

Maximum Video Memory

None

Cache

None

BIOS

Award/Phoenix

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80287

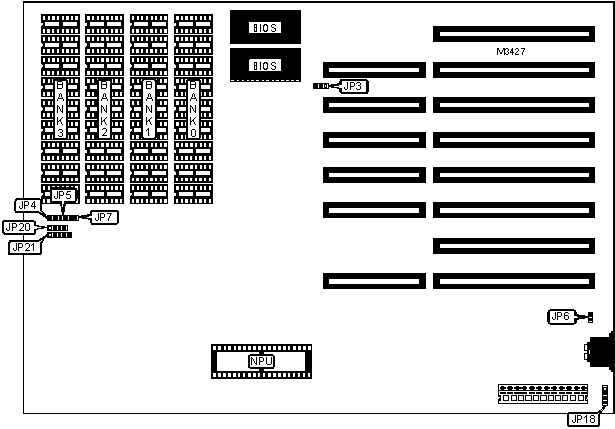

CONNECTIONS

Purpose

Location

Purpose

Location

Turbo switch

JP4

External battery

JP18

Reset switch

JP5

Speaker

JP20

Turbo LED

JP7

Power LED & keylock

JP21

USER CONFIGURABLE SETTINGS

Function

Label

Position



BIOS type select 27128

JP3

Pins 1 & 2 closed



BIOS type select 27256

JP3

Pins 2 & 3 closed



Monitor type select monochrome

JP6

Open



Monitor type select color

JP6

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(9) 41256

(9) 41256

None

None

1MB

(9) 41256

(9) 41256

(9) 41256

(9) 41256

2MB

(9) 411000

(9) 411000

None

None

4MB

(9) 411000

(9) 411000

(9) 411000

(9) 411000
