COMPUTREND SYSTEMS, INC.

PREMIO PCI PENTIUM S17

Processor

Pentium

Processor Speed

75/90/100/120/133MHz

Chip Set

SIS

Max. Onboard DRAM

128MB

Cache

256/512/1024KB

BIOS

AMI

Dimensions

280mm x 220mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VRM connector

NPU Options

None

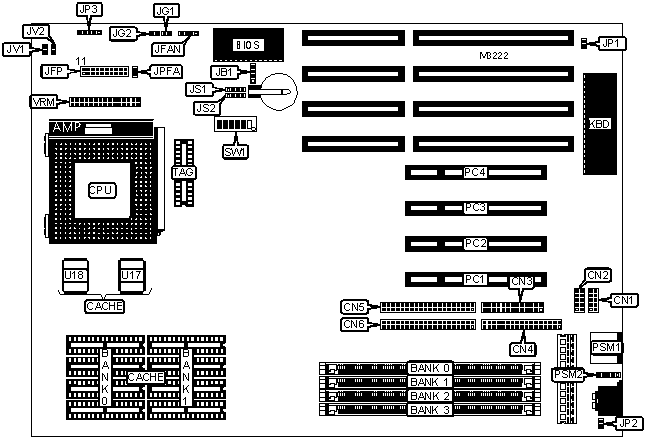

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

Speaker

JFP pins 7 - 10

Serial port 2

CN2

Turbo LED

JFP pins 12 & 13

Parallel port

CN3

Turbo switch

JFP pins 15 - 17

Floppy drive interface

CN4

Reset switch

JFP pins 19 & 20

IDE interface

CN5

Green PC connector

JG1

IDE interface

CN6

Green PC LED

JG2

External battery

JB1

PS/2 mouse port

PSM1

Chassis fan power

JFAN

PS/2 mouse interface

PSM2

IDE interface LED

JFPA

32-bit PCI slots

PC1 - PC4

Power LED & keylock

JFP pins 1 - 5

VRM connector

VRM

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Factory configured - do not alter

JP1

N/A

»

Factory configured - do not alter

JP2

N/A

»

Factory configured - do not alter

JP3

N/A

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

4MB

(1) 1M x 36

NONE

NONE

NONE

8MB

(1) 2M x 36

NONE

NONE

NONE

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

8MB

NONE

NONE

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

NONE

NONE

NONE

16MB

(1) 2M x 36

(1) 2M x 36

NONE

NONE

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

16MB

NONE

NONE

(1) 2M x 36

(1) 2M x 36

20MB

(1) 1M x 36

(1) 4M x 36

NONE

NONE

20MB

(1) 4M x 36

(1) 1M x 36

NONE

NONE

20MB

NONE

NONE

(1) 1M x 36

(1) 4M x 36

20MB

NONE

NONE

(1) 4M x 36

(1) 1M x 36

24MB

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

24MB

(1) 2M x 36

(1) 2M x 36

(1) 1M x 36

(1) 1M x 36

32MB

(1) 8M x 36

NONE

NONE

NONE

32MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

32MB

NONE

NONE

(1) 4M x 36

(1) 4M x 36

32MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

40MB

(1) 2M x 36

(1) 8M x 36

NONE

NONE

40MB

(1) 8M x 36

(1) 2M x 36

NONE

NONE

40MB

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

40MB

(1) 4M x 36

(1) 4M x 36

(1) 1M x 36

(1) 1M x 36

40MB

NONE

NONE

(1) 2M x 36

(1) 8M x 36

40MB

NONE

NONE

(1) 8M x 36

(1) 2M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

48MB

(1) 4M x 36

(1) 4M x 36

(1) 2M x 36

(1) 2M x 36

48MB

(1) 2M x 36

(1) 2M x 36

(1) 4M x 36

(1) 4M x 36

60MB

(1) 1M x 36

(1) 4M x 36

(1) 2M x 36

(1) 8M x 36

60MB

(1) 4M x 36

(1) 1M x 36

(1) 8M x 36

(1) 8M x 36

64MB

(1) 8M x 36

(1) 8M x 36

NONE

NONE

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

64MB

NONE

NONE

(1) 8M x 36

(1) 8M x 36

72MB

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

(1) 8M x 36

72MB

(1) 4M x 36

(1) 4M x 36

(1) 2M x 36

(1) 8M x 36

72MB

(1) 8M x 36

(1) 8M x 36

(1) 1M x 36

(1) 1M x 36

80MB

(1) 2M x 36

(1) 2M x 36

(1) 8M x 36

(1) 8M x 36

80MB

(1) 8M x 36

(1) 8M x 36

(1) 2M x 36

(1) 2M x 36

96MB

(1) 8M x 36

(1) 8M x 36

(1) 4M x 36

(1) 4M x 36

128MB

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

(1) 8M x 36

Note: Board will accept EDO and FP DRAM modules.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

U17 & U18

TAG

256KB (A)

(4) 32K x 8

(4) 32K x 8

NONE

(1) 8K/16K x 8

256KB (B)

NONE

NONE

(2) 32K x 32

(1) 8K/16K x 8

512KB (A)

(4) 64K x 8

(4) 64K x 8

NONE

(1) 16K x 8

512KB (B)

(4) 64K x 8

(4) 64K x 8

NONE

(1) 16K x 8

1MB

(4) 128K x 8

(4) 128K x 8

NONE

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JS1

JS2

256KB (A)

Pins 1 & 2 closed

Pins 2 & 3 closed

256KB (B)

Pins 3 & 4 closed

Pins 2 & 3 closed

512KB (A) (128AK)

Pins 3 & 4 closed

Pins 3 & 4 closed

512KB (B) (129AK)

Pins 2 & 3 closed

Pins 2 & 3 closed

1MB

Pins 2 & 3 closed

Pins 1 & 2 closed

CPU SPEED CONFIGURATION

Speed

SW1/1

SW1/2

SW1/3

SW1/4

SW1/5

SW1/6

75MHz

Off

Off

Off

Off

Off

On

80MHz*

On

On

Off

Off

On

Off

90MHz

Off

Off

Off

On

Off

On

100MHz

Off

Off

Off

On

On

On

120MHz*

On

Off

Off

Off

On

Off

120MHz

Off

On

Off

On

Off

On

133MHz

Off

On

Off

On

On

On

Note: 80MHz* & 120MHz* are reserved for future CX M1 CPU’s.

CPU VOLTAGE CONFIGURATION

Voltage

JV1

JV2

»

3.38v

Closed

Closed



3.52v

Open

Closed
