DTK COMPUTER, INC.

PAM-0054I

Processor

Pentium

Processor Speed

75/90/100/120/133MHz

Chip Set

Unidentified

Max. Onboard DRAM

128MB

Cache

256/512KB

BIOS

Award

Dimensions

330mm x 218mm

I/O Options

32-bit PCI slots (3), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VRM connector

NPU Options

None

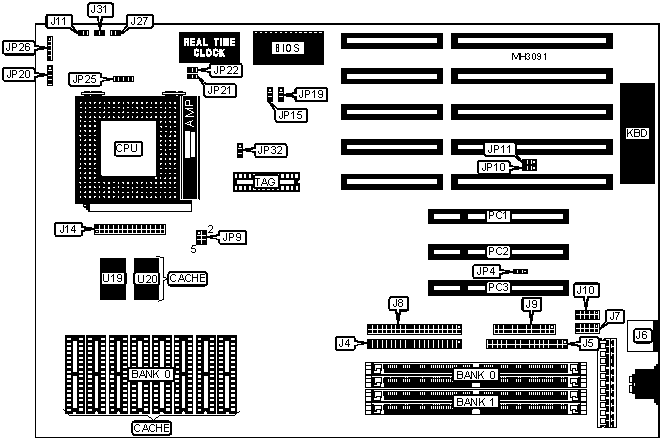

CONNECTIONS

Purpose

Location

Purpose

Location

IDE interface 1

J4

VRM connector

J14

Floppy drive interface

J5

Reset switch

J27

PS/2 mouse port

J6

Turbo LED

J31

Serial port 1

J7

Speaker

JP20

IDE interface 2

J8

Chassis fan power

JP25

Parallel port

J9

Power LED & keylock

JP26

Serial port 2

J10

32-bit PCI slots

PC1 - PC3

IDE interface LED

J11



Note: The location of pin 1 on JP25 is unidentified.

USER CONFIGURABLE SETTINGS

Function

Jumper

Position



On board I/O enabled

JP4

pins 1 & 2 closed



On board I/O disabled

JP4

pins 2 & 3 closed



Flash BIOS programming enabled

JP19

pins 1 & 2 closed



Flash BIOS programming disabled

JP19

pins 2 & 3 closed

»

CMOS memory normal operation

JP21

Open



CMOS memory clear

JP21

Closed

»

CMOS memory normal operation

JP22

Open



CMOS memory clear

JP22

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

2MB

(2) 256K x 36

NONE

4MB

(2) 512K x 36

NONE

4MB

(2) 256K x 36

(2) 256K x 36

6MB

(2) 512K x 36

(2) 256K x 36

6MB

(2) 256K x 36

(2) 512K x 36

8MB

(2) 1M x 36

NONE

8MB

(2) 512K x 36

(2) 512K x 36

10MB

(2) 1M x 36

(2) 256K x 36

10MB

(2) 256K x 36

(2) 1M x 36

12MB

(2) 1M x 36

(2) 512K x 36

12MB

(2) 512K x 36

(2) 1M x 36

16MB

(2) 2M x 36

NONE

16MB

(2) 1M x 36

(2) 1M x 36

18MB

(2) 2M x 36

(2) 256K x 36

18MB

(2) 256K x 36

(2) 2M x 36

20MB

(2) 2M x 36

(2) 512K x 36

20MB

(2) 512K x 36

(2) 2M x 36

24MB

(2) 2M x 36

(2) 1M x 36

24MB

(2) 1M x 36

(2) 2M x 36

32MB

(2) 4M x 36

NONE

32MB

(2) 2M x 36

(2) 2M x 36

34MB

(2) 4M x 36

(2) 256K x 36

34MB

(2) 256K x 36

(2) 4M x 36

DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

36MB

(2) 4M x 36

(2) 512K x 36

36MB

(2) 512K x 36

(2) 4M x 36

40MB

(2) 4M x 36

(2) 1M x 36

40MB

(2) 1M x 36

(2) 4M x 36

48MB

(2) 4M x 36

(2) 2M x 36

48MB

(2) 2M x 36

(2) 4M x 36

64MB

(2) 8M x 36

NONE

64MB

(2) 4M x 36

(2) 4M x 36

66MB

(2) 8M x 36

(2) 256K x 36

66MB

(2) 256K x 36

(2) 8M x 36

68MB

(2) 8M x 36

(2) 512K x 36

68MB

(2) 512K x 36

(2) 8M x 36

72MB

(2) 8M x 36

(2) 1M x 36

72MB

(2) 1M x 36

(2) 8M x 36

80MB

(2) 8M x 36

(2) 2M x 36

80MB

(2) 2M x 36

(2) 8M x 36

96MB

(2) 8M x 36

(2) 4M x 36

96MB

(2) 4M x 36

(2) 8M x 36

128MB

(2) 8M x 36

(2) 8M x 36

CACHE CONFIGURATION

Size

Bank 0

TAG

U19

U20

256KB (A)

(8) 32K x 8

(1) 8K or (1) 32K x 8

NONE

NONE

256KB (B)

NONE

NONE

(1) 32K x 32/36

(1) 32K x 32/36

512KB

(8) 64K x 8

(1) 32K x 8

NONE

NONE

Note: If U19 and U20 are used, Bank 0 must be empty.

CACHE JUMPER CONFIGURATION

Size

JP15

JP32

None

N/A

pins 1 & 2 closed

256KB (A)

pins 1 & 2 closed

pins 1 & 2 closed

256KB (B)

pins 2 & 3 closed

pins 1 & 2 closed

512KB

pins 1 & 2 closed

pins 2 & 3 closed

CPU SPEED CONFIGURATION (MX8318)

Speed

JP9

JP21

75MHz

pins 5 & 6 closed

Open

90MHz

pins 3 & 4 closed

Open

100MHz

pins 1 & 2, 5 & 6 closed

Open

120MHz

pins 3 & 4 closed

Closed

133MHz

pins 1 & 2, 5 & 6 closed

Closed

CPU SPEED CONFIGURATION (IMI1464)

Speed

JP9

JP21

75MHz

pins 1 & 2 closed

Open

90MHz

pins 1 & 2, 5 & 6 closed

Open

100MHz

pins 1 & 2, 3 & 4, 5 & 6 closed

Open

120MHz

pins 1 & 2, 5 & 6 closed

Closed

133MHz

pins 1 & 2, 3 & 4, 5 & 6 closed

Closed

DMA CONFIGURATION

DMA

JP10

JP11

DMA 1

pins 1 & 2 closed

pins 1 & 2 closed

DMA 3

pins 2 & 3 closed

pins 2 & 3 closed
