DATAEXPERT CORPORATION

EXP386

Processor

80386SX

Processor Speed

16/20MHz

Chip Set

C & T

Max. Onboard DRAM

16MB (8MB on external memory card)

Cache

None

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

External memory card

NPU Options

80387SX

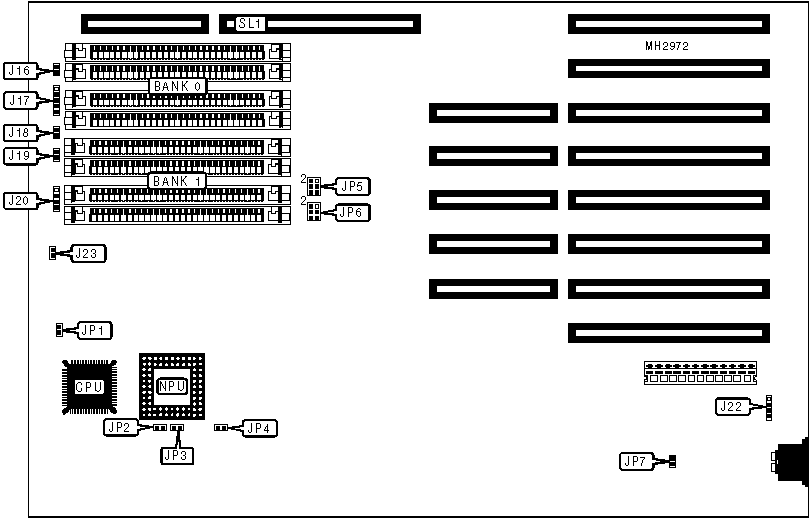

CONNECTIONS

Purpose

Location

Purpose

Location

Turbo switch

J16

Speaker

J20

Power LED & keylock

J17

External battery

J22

Turbo LED 1

J18

Turbo LED 2

J23

Reset switch

J19

External memory card

SL1

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

NPU synchronous with CPU

JP1

Open



NPU asynchronous with CPU

JP1

Closed

»

Pipeline mode enabled

JP3

Closed



Pipeline mode disabled

JP3

Open

»

Monitor type select monochrome

JP7

Open



Monitor type select color

JP7

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 256K x 9

(4) 1M x 9

8MB

(4) 1M x 9

(4) 1M x 9

DRAM JUMPER CONFIGURATION

Setting

JP5

JP6

SIMM Bank 0 & RAM card Bank 2

pins 2 & 3, 4 & 5 closed

pins 2 & 3, 4 & 5 closed

SIMM Bank 1 & RAM card Bank 3

pins 1 & 2, 5 & 6 closed

pins 1 & 2, 5 & 6 closed

NPU CONFIGURATION

Setting

JP2

JP4

Not installed

Open

Open

Installed

Closed

Closed
