COMPAQ COMPUTER CORPORATION

DESKPRO 450/466/4100

PROLINEA 450/466/4100

Processor

80486DX2/80486DX4

Processor Speed

50(internal)/66(internal)/100(internal)MHz

Chip Set

Unidentified

Max. Onboard DRAM

72MB

Cache

128/256KB (depends on cache card installed)

BIOS

Unidentified

Dimensions

330mm x 218mm

I/O Options

Parallel port, PS/2 mouse port, serial port, VGA feature connector, VGA port, ethernet port, AUI port, external cache interface, video memory interface

NPU Options

None

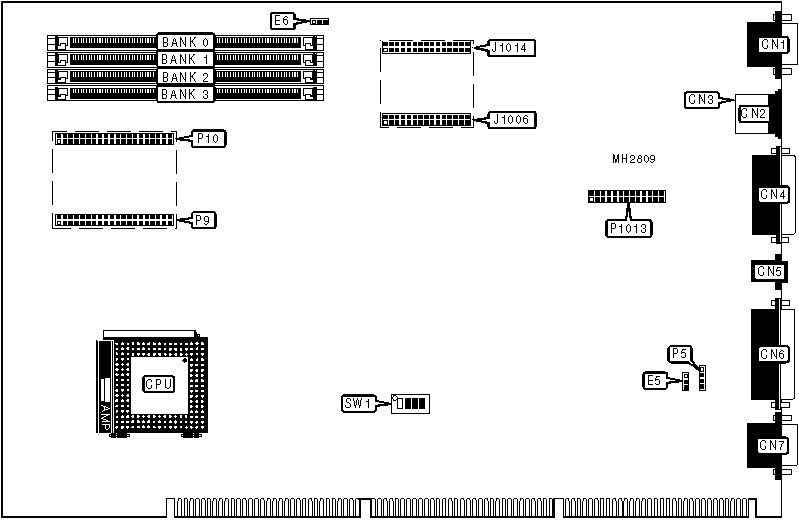

CONNECTIONS

Purpose

Location

Purpose

Location

VGA port

CN1

Serial port

CN7

PS/2 mouse port

CN2

Video memory interface

J1014, J1006

Keyboard port

CN3

External battery

P5

AUI port

CN4

Cache interface

P9, P10

Ethernet port

CN5

VGA feature connector

P1013

Parallel port

CN6



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Battery type select internal

E5

pins 1 & 2 closed



Battery type select external

E5

pins 2 & 3 closed

»

Password enabled

E6

pins 1 & 2 closed



Password disabled

E6

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0A

Bank 0

Bank 1

Bank 2

Bank 3

8MB

8MB

NONE

NONE

NONE

NONE

10MB

8MB

(1) 512K x 36

NONE

NONE

NONE

12MB

8MB

(1) 512K x 36

(1) 512K x 36

NONE

NONE

12MB

8MB

(1) 1M x 36

NONE

NONE

NONE

14MB

8MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

NONE

14MB

8MB

(1) 512K x 36

(1) 1M x 36

NONE

NONE

16MB

8MB

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

(1) 512K x 36

16MB

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

16MB

8MB

(1) 2M x 36

NONE

NONE

NONE

16MB

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

18MB

8MB

(1) 512K x 36

(1) 2M x 36

NONE

NONE

20MB

8MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

NONE

20MB

8MB

(1) 1M x 36

(1) 2M x 36

NONE

NONE

24MB

8MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

24MB

8MB

(1) 2M x 36

(1) 2M x 36

NONE

NONE

24MB

8MB

(1) 4M x 36

NONE

NONE

NONE

26MB

8MB

(1) 512K x 36

(1) 4M x 36

NONE

NONE

28MB

8MB

(1) 1M x 36

(1) 4M x 36

NONE

NONE

28MB

8MB

(1) 4M x 36

(1) 1M x 36

NONE

NONE

32MB

8MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

NONE

32MB

8MB

(1) 4M x 36

(1) 2M x 36

NONE

NONE

40MB

8MB

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

(1) 2M x 36

40MB

8MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

40MB

8MB

(1) 8M x 36

NONE

NONE

NONE

40MB

8MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

40MB

8MB

(1) 1M x 36

(1) 1M x 36

(1) 2M x 36

(1) 4M x 36

42MB

8MB

(1) 512K x 36

(1) 8M x 36

NONE

NONE

44MB

8MB

(1) 1M x 36

(1) 8M x 36

NONE

NONE

48MB

8MB

(1) 1M x 36

(1) 2M x 36

(1) 2M x 36

(1) 4M x 36

52MB

8MB

(1) 1M x 36

(1) 4M x 36

(1) 2M x 36

(1) 4M x 36

56MB

8MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

NONE

56MB

8MB

(1) 4M x 36

(1) 8M x 36

NONE

NONE

72MB

8MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

Note: Bank 0A is factory installed and is not configurable. The location is unidentified.

CACHE CONFIGURATION

Note: The size of the cache is dependent upon the cache module installed. Modules are available in 128KB or 256KB. Install the module on jumpers P9 & P10.

CPU SPEED CONFIGURATION

Speed

SW1/1

SW1/2

SW1/3

SW1/4

50iMHz

On

On

Off

Off

66iMHz

On

Off

Off

Off

100iMHz

On

Off

Off

Off

VIDEO MEMORY CONFIGURATION

Note: To upgrade the video memory to 1MB, install the video module on jumpers J1014 & J1006.
