Processor	80386DX
Processor Speed	25/33/40MHz
Chip Set	Symphony
Max. onboard DRAM	32MB
Cache	None
BIOS	AMI/DTK
Dimensions	220mm x 218mm
I/O Options	None
NPU Options	80387DX

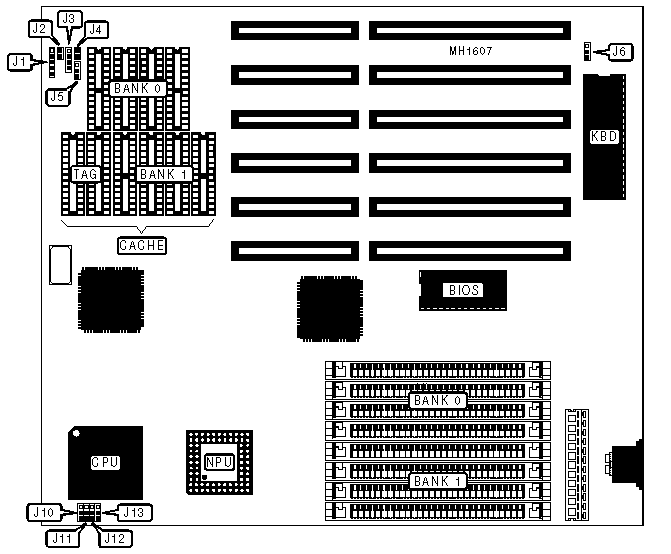

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED & keylock	J1	Speaker	J3
Turbo LED	J2	Reset switch	J4

USER CONFIGURABLE SETTINGS
Function		Jumper/Switch	Position
»	CPU speed normal	J5	pins 1 & 2 closed
	CPU speed High	J5	pins 2 & 3 closed
»	Monitor type select monochrome	J6	pins 1 & 2 closed
	Monitor type select color	J6	pins 2 & 3 closed
Note:Turbo speed can also be activated by pressing Ctrl, Alt, and - simultaneously.

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
17MB	(4) 256K x 9	(4) 4M x 9
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9

CACHE CONFIGURATION
Size	Bank 0	Bank 1	TAG
64KB	(4) 8K x 8	(4) 8K x 8	(2) 8K x 8
128KB	(4) 32K x 8	NONE	(2) 32K x 8
256KB	(4) 32K x 8	(4) 32K x 8	(2) 32K x 8

CACHE JUMPER CONFIGURATION
Size	J10	J11	J12	J13
64KB	pins 2 & 3 closed	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
128KB	pins 2 & 3 closed	pins 2 & 3 closed	pins 1 & 2 closed	pins 2 & 3 closed
256KB	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed	pins 1 & 2 closed
