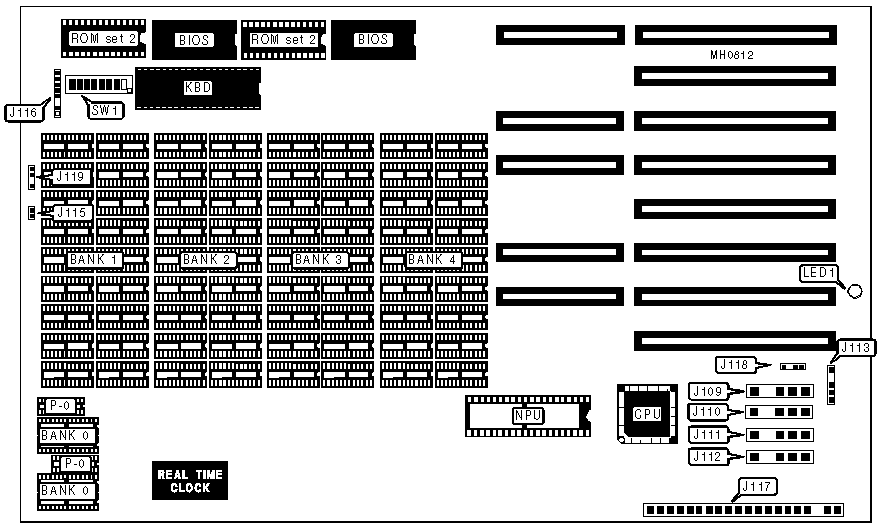

COMPAQ COMPUTER CORPORATION
DESKPRO 286 (12MHz)
Processor |
80286 |
Processor Speed |
12MHz |
Chip Set |
ETEQ |
Max. Onboard DRAM |
2.125MB |
Cache |
None |
BIOS |
Compaq |
Dimensions |
330mm x 218mm |
I/O Options |
None |
NPU Options |
80287 |
CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
Fixed drive power |
J109 |
Proprietary keyboard connector |
J116 |
Fixed drive/Tape backup power |
J110 |
Main power |
J117 |
Floppy drive power |
J111 |
External battery |
J118 |
Floppy drive power |
J112 |
Keylock |
J119 |
Monitor power |
J113 |
Onboard power LED |
LED1 |
Speaker |
J115 |
|
|
USER CONFIGURABLE SETTINGS |
||||
Function |
Jumper/Switch |
Position |
||
» |
Oscillator type select single package |
E3 |
Closed |
|
|
Oscillator type select dual package |
E3 |
Open |
|
» |
Memory operation generation select discrete gate |
E4 |
pins 1 & 2 closed |
|
|
Memory operation generation select CBC internal |
E4 |
pins 2 & 3 closed |
|
» |
Auto slowdown disabled in software |
E5 |
pins 1 & 2 closed |
|
|
Auto slowdown enabled in software |
E5 |
pins 2 & 3 closed |
|
» |
CPU speed select switchable at keyboard |
SW1/6 |
Off |
|
|
CPU speed select forced slow |
SW1/6 |
On |
|
» |
Factory configured - do not alter |
SW1/7 |
Off |
|
» |
Monitor type select color |
SW1/8 |
On |
|
|
Monitor type select monochrome |
SW1/8 |
Off |
|
|
Notes: Settings for E3, E4, and E5 are accomplished by cutting the conductors on the bottom of the board and re-soldering the indicated locations. WARNING: Modifying E3, E4, or E5 will void the manufacturers warranty! |
DRAM CONFIGURATION |
||||||
Size |
Bank 0 |
P-0 |
Bank 1 |
Bank 2 |
Bank 3 |
Bank 4 |
256KB |
(4) 4464 |
(2) 4164 |
(18) 4164 |
NONE |
NONE |
NONE |
512KB |
(4) 4464 |
(2) 4164 |
(18) 4164 |
(18) 4164 |
(18) 4164 |
NONE |
640KB |
(4) 4464 |
(2) 4164 |
(18) 4164 |
(18) 4164 |
(18) 4164 |
(18) 4164 |
640KB |
(4) 4464 |
(2) 4164 |
(18) 41256 |
NONE |
NONE |
NONE |
1.125MB |
(4) 4464 |
(2) 4164 |
(18) 41256 |
(18) 41256 |
NONE |
NONE |
1.625MB |
(4) 4464 |
(2) 4164 |
(18) 41256 |
(18) 41256 |
(18) 41256 |
NONE |
2.125MB |
(4) 4464 |
(2) 4164 |
(18) 41256 |
(18) 41256 |
(18) 41256 |
(18) 41256 |
DRAM SWITCH CONFIGURATION |
|||||
Size |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
Disabled |
N/A |
On |
On |
N/A |
N/A |
256KB |
On |
On |
Off |
Off |
Off |
512KB |
On |
Off |
On |
Off |
Off |
640KB |
On |
Off |
Off |
Off |
Off |
640KB |
Off |
Off |
Off |
On |
On |
1.125MB |
Off |
Off |
Off |
On |
Off |
1.625MB |
Off |
Off |
Off |
Off |
On |
2.125MB |
Off |
Off |
Off |
Off |
Off |
Notes: Closing both SW1/switch 2 and SW1/switch 3, disables banks 0 & 1 and any onboard ROM. |
ROM JUMPER CONFIGURATION |
|||
ROM type |
Size |
BIOS ROM/E1 |
ROM set 2/E2 |
Static |
8K x 8 |
1 & 2, 4 & 5, 7 & 8 |
1 & 2, 4 & 5, 7 & 8 |
Static |
16K x 8 |
2 & 3, 4 & 5, 7 & 8 |
2 & 3, 4 & 5, 7 & 8 |
Static |
32K x 8 |
2 & 3, 4 & 5, 7 & 8 |
2 & 3, 5 & 6, 7 & 8 |
Dynamic |
8K x 8 |
1 & 2, 4 & 5, 8 & 9 |
1 & 2, 4 & 5, 8 & 9 |
Dynamic |
16K x 8 |
2 & 3, 4 & 5, 8 & 9 |
2 & 3, 4 & 5, 8 & 9 |
Dynamic |
32K x 8 |
2 & 3, 5 & 6, 8 & 9 |
2 & 3, 5 & 6, 8 & 9 |
Notes: Settings are accomplished by cutting the conductors on the bottom of the board and re-soldering the indicated locations. Pins designated should be in the closed position. WARNING: Modifying the factory configurations will void the manufacturers warranty! |
