CACHE COMPUTERS, INC.

SX 386-20 (Model 308)

Processor

80386SX

Processor Speed

16/20MHz

Chip Set

VIA

Max. Onboard DRAM

8MB

Cache

None

BIOS

AMI/Award/Phoenix/Quadtel

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80387SX

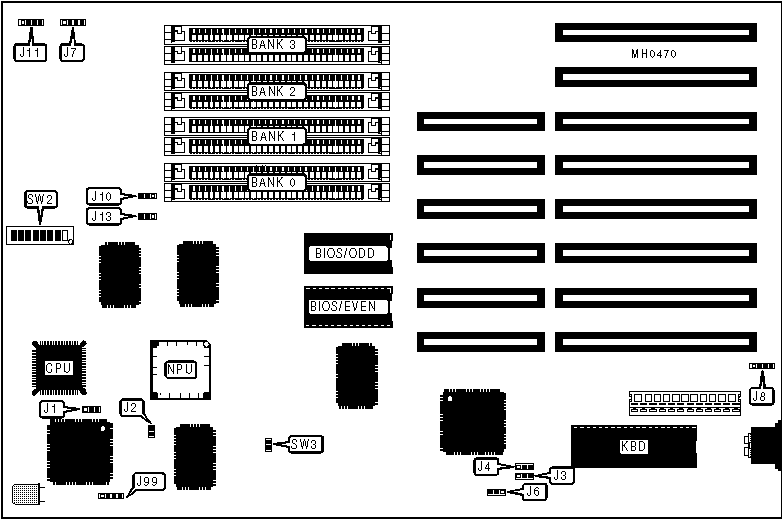

CONNECTIONS

Purpose

Location

Purpose

Location

Turbo switch

J3

External battery

J8

Turbo LED

J6

Speaker

J11

Power LED & keylock

J7

Reset switch

SW3

Note:The location of the expansion slots is unidentified.

USER CONFIGURABLE SETTINGS

Function

Jumper/Switch

Position

»

CPU speed select 20MHz

J1

Open



CPU speed select 16MHz

J1

Closed

»

NPU disabled

J2

Closed



NPU enabled

J2

Open

»

Monitor type select monochrome

J4

Open



Monitor type select color

J4

Closed

»

DMA speed select 8/10MHz

J99

pins 2 & 3 closed



DMA speed select 4MHz

J99

Closed



DMA speed select synchronous with CPU

J99

pins 1 & 2 closed

»

Factory configured - do not alter

SW2/5

Off

»

Factory configured - do not alter

SW2/6

Off

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

512KB

(2) 256K x 9

NONE

NONE

NONE

1MB

(2) 256K x 9

(2) 256K x 9

NONE

NONE

1.5MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

NONE

2MB

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

(2) 256K x 9

2MB

(2) 1M x 9

NONE

NONE

NONE

3MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

NONE

4MB

(2) 1M x 9

(2) 1M x 9

NONE

NONE

5MB

(2) 256K x 9

(2) 256K x 9

(2) 1M x 9

(2) 1M x 9

6MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

NONE

8MB

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

(2) 1M x 9

DRAM JUMPER/SWITCH CONFIGURATION

Size

J10

J13

SW2/1

SW2/2

SW2/3

SW2/4

512KB

2 & 3

2 & 3

Off

Off

Off

Off

1MB

2 & 3

2 & 3

On

Off

Off

Off

1.5MB

2 & 3

2 & 3

Off

On

Off

Off

2MB

2 & 3

2 & 3

On

On

Off

Off

2MB

1 & 2

1 & 2

Off

Off

On

On

3MB

2 & 3

1 & 2

Off

On

On

Off

4MB

1 & 2

1 & 2

On

Off

On

On

5MB

2 & 3

1 & 2

On

On

On

Off

6MB

1 & 2

1 & 2

Off

On

On

On

8MB

1 & 2

1 & 2

On

On

On

On

Note:Pins designated should be in the closed position.

DRAM WAIT STATE CONFIGURATION

Read States

Write States

SW2/7

SW2/8

NONE

NONE

Off

On

1

1

Off

Off

1

2

On

Off

2

2

On

On
