DASH COMPUTER, INC.

DC-386 33/40C

Processor

80386DX

Processor Speed

25/33/40MHz

Chip Set

OPTI

Max. Onboard DRAM

32MB

Cache

32/64/128/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

32-bit external memory card slot

NPU Options

80387DX/3167

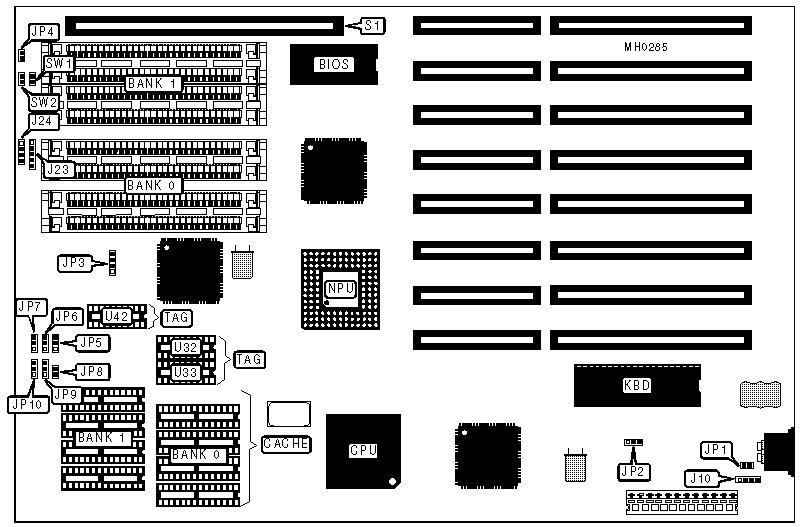

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

J10

32-bit external memory card

S1

Power LED & keylock

J23

Reset switch

SW1

Speaker

J24

Turbo switch

SW2

Turbo LED

JP4



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select color

JP1

Open



Monitor type select monochrome

JP1

Closed

»

CMOS memory normal operation

JP2

pins 2 & 3 closed



CMOS memory clear

JP2

pins 1 & 2 closed

»

Bus speed select ATCLK/8

JP3

pins 1 & 2 closed



Bus speed select ATCLK/6

JP3

pins 1 & 2 open

Note:JP3 is a 4-pin jumper, pins 3 & 4 are not used.

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 256K x 9

NONE

NONE

NONE

2MB

(4) 256K x 9

(4) 256K x 9

NONE

NONE

4MB

(4) 1M x 9

NONE

NONE

NONE

5MB

(4) 256K x 9

(4) 1M x 9

NONE

NONE

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

12MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

NONE

NONE

20MB

(4) 1M x 9

(4) 4M x 9

NONE

NONE

24MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

NONE

28MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

32MB

(4) 4M x 9

(4) 4M x 9

NONE

NONE

36MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

NONE

40MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

48MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

NONE

52MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

64MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

Note:Banks 2 & 3 are utilized when a 32-bit external memory card is installed at S1.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG (U32, U33)

TAG (U42)

32KB

(4) 8K x 8

NONE

(2) 4K x 4

(1) 4K x 4

64KB

(4) 8K x 8

(4) 8K x 8

(2) 4K x 4

(1) 4K x 4

128KB

(4) 32K x 8

NONE

(2) 16K x 4

(1) 16K x 1

256KB

(4) 32K x 8

(4) 32K x 8

(2) 16K x 4

(1) 16K x 1

CACHE JUMPER CONFIGURATION

Size

JP5

JP6

JP7

JP8

JP9

JP10

32KB

1 & 2

1 & 2

1 & 2

Open

2 & 3

2 & 3

64KB

2 & 3

1 & 2

1 & 2

Open

2 & 3

1 & 2

128KB

2 & 3

1 & 2

2 & 3

Closed

2 & 3

1 & 2

256KB

2 & 3

2 & 3

2 & 3

Closed

1 & 2

1 & 2

Note:Pins designated should be in the closed position.
