CHEERFUL INTERNATIONAL CORP.

CT33DX

Processor

80386DX

Processor Speed

33MHz

Chip Set

Elite

Max. Onboard DRAM

32MB

Cache

64/128KB

BIOS

MR

Dimensions

330mm x 218mm

I/O Options

32-bit external memory card

NPU Options

80387/3167

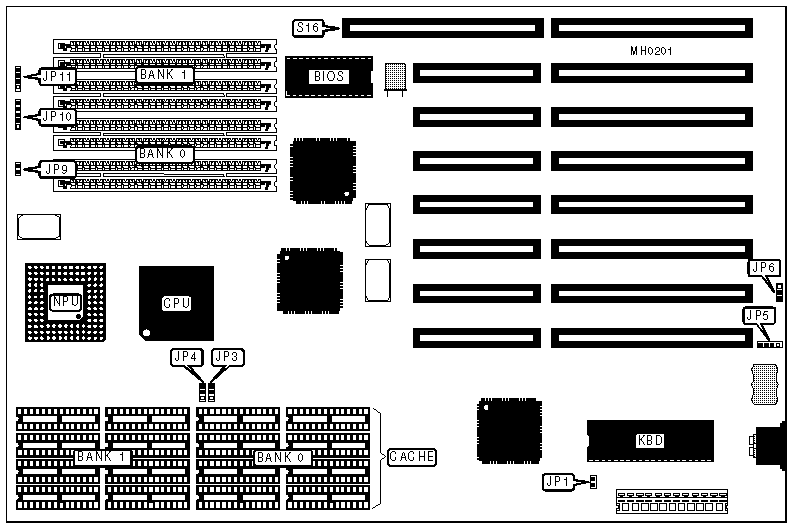

CONNECTIONS

Purpose

Location

Purpose

Location

External battery

JP5

Speaker

JP11

Reset switch

JP9

32-bit external memory card

S16

Power LED & keylock

JP10



USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select color

JP1

pins 1 & 2 closed



Monitor type select monochrome

JP1

pins 2 & 3 closed

»

CMOS memory normal operation

JP6

pins 2 & 3 closed



CMOS memory clear

JP6

pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(4) 256K x 9

NONE

NONE

NONE

2MB

(4) 256K x 9

(4) 256K x 9

NONE

NONE

3MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

NONE

4MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

5MB

(4) 256K x 9

(4) 1 M x 9

NONE

NONE

6MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

NONE

7MB

(4) 256K x 9

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

8MB

(4) 1M x 9

(4) 1M x 9

NONE

NONE

9MB

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

NONE

10MB

(4) 256K x 9

(4) 256K x 9

(4) 1M x 9

(4) 1M x 9

12MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

NONE

13MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 256K x 9

16MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

20MB

(4) 1M x 9

(4) 4M x 9

NONE

NONE

24MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

NONE

28MB

(4) 1M x 9

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

32MB

(4) 4M x 9

(4) 4M x 9

NONE

NONE

36MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

NONE

40MB

(4) 1M x 9

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

48MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

NONE

49MB

(4) 256K x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

52MB

(4) 1M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

64MB

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

(4) 4M x 9

Note:Banks 2 and 3 are used when a 32-bit external memory card is installed at S1.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

64KB

(8) 8K x 8

NONE

128KB

(8) 8K x 8

(8) 8K x 8

CACHE JUMPER CONFIGURATION

Size

JP3

JP4

64KB

pins 1 & 2 closed

pins 1 & 2 closed

128KB

pins 2 & 3 closed

pins 2 & 3 closed
