ACER, INC.

V59LA

Device Type

Mainboard

Processor

CX MII/AM K6/Pentium/Pentium MMX

Processor Speed

75/90/100/120/133/150/166/200/233/266/300MHz

Chip Set

Unidentified

Video Chip Set

Unidentified

Maximum Onboard Memory

256MB (EDO & SDRAM supported)

Maximum Video Memory

4MB

Cache

512KB

BIOS

Acer

Dimensions

254mm x 218mm

I/O Options

Ethernet 10BaseT connector, floppy drive interface, game interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), VGA port, riser slot, USB connector, audio in - CD-ROM, wake on LAN connector, wake on modem connector

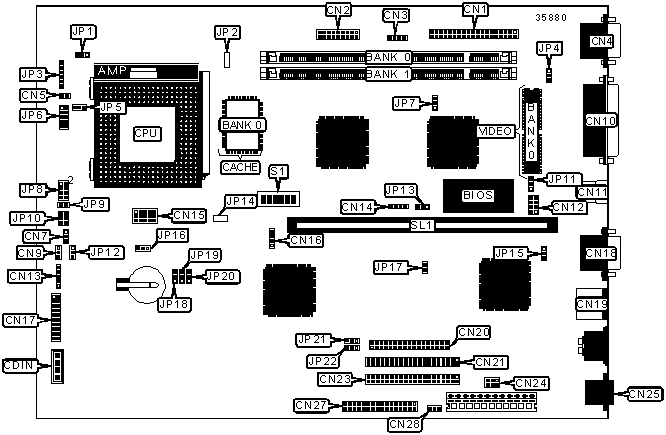

CONNECTIONS

Purpose

Location

Purpose

Location

Audio in - CD-ROM

CDIN

IDE interface 1

CN21

AMC connector

CN1

IDE interface 2

CN23

VGA interface

CN2

LAN LED

CN24

VGA port

CN4

Ethernet 10BaseT connector

CN25

Chassis fan power

CN5

Audio connector

CN27

Printer connector

CN6

Green PC connector

CN28

Power LED

CN8

Modem connector

CN29

Reset switch

CN9

Chassis fan power

JP3

Parallel port

CN10

IDE interface LED

JP8/pins 1 - 3

USB connector

CN11

Power message LED

JP8/pins 2/4/6

Serial port/USB connector

CN12

Power on connector

JP8/pins 7 & 8

Wake on LAN connector

CN14

Power on connector

JP9

Voltage connector

CN15

Microphone in

JP10/pins 2 & 4

Wake on modem connector

CN16

Wavetable connector

JP10/pins 1/3/5

Game interface

CN17

LAN LED

JP17

Serial port 1

CN18

Speaker

JP25

PS/2 mouse port

CN19

Riser slot

SL1

Floppy drive interface

CN20



Note: The location of CN6, CN8, CN29 & JP25 are unidentified.

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Factory configured - do not alter

CN3

Unidentified

»

Factory configured - do not alter

CN17

Unidentified

»

Interrupt enabled

JP4

Pins 2 & 3 closed



Interrupt disabled

JP4

Pins 1 & 2 closed

»

On board video enabled

JP7

Pins 2 & 3 closed



On board video disabled

JP7

Pins 1 & 2 closed

»

Flash BIOS voltage select 5v

JP11

Pins 2 & 3 closed



Flash BIOS voltage select 12v

JP11

Pins 1 & 2 closed

»

Support green PC connector

JP12

Pins 1 & 2 closed



Support reset switch

JP12

Pins 2 & 3 closed

»

Boot block enabled

JP13

Pins 2 & 3 closed



Boot block disabled

JP13

Pins 1 & 2 closed

USER CONFIGURABLE SETTINGS (CON'T)

Function

Label

Position

»

LAN disabled

JP15

Pins 2 & 3 closed



LAN enabled

JP15

Pins 1 & 2 closed

»

UPS enabled

JP16

Pins 1 & 2 closed



UPS disabled

JP16

Pins 2 & 3 closed

»

BIOS type select Acer

JP21

Pins 1 & 2 closed



BIOS type select OEM

JP21

Pins 2 & 3 closed

»

Password disabled

JP22

Pins 2 & 3 closed



Password enabled

JP22

Pins 1 & 2 closed

DIMM CONFIGURATION

Size

Bank 0

Bank 1

8MB

(1) 1M x 64

None

16MB

(1) 2M x 64

None

16MB

(1) 1M x 64

(1) 1M x 64

24MB

(1) 2M x 64

(1) 1M x 64

32MB

(1) 4M x 64

None

32MB

(1) 2M x 64

(1) 2M x 64

40MB

(1) 4M x 64

(1) 1M x 64

48MB

(1) 4M x 64

(1) 2M x 64

64MB

(1) 8M x 64

None

64MB

(1) 4M x 64

(1) 4M x 64

72MB

(1) 8M x 64

(1) 1M x 64

80MB

(1) 8M x 64

(1) 2M x 64

96MB

(1) 8M x 64

(1) 4M x 64

128MB

(1) 16M x 64

None

128MB

(1) 8M x 64

(1) 8M x 64

136MB

(1) 16M x 64

(1) 1M x 64

144MB

(1) 16M x 64

(1) 2M x 64

160MB

(1) 16M x 64

(1) 4M x 64

192MB

(1) 16M x 64

(1) 8M x 64

256MB

(1) 16M x 64

(1) 16M x 64

Note: Board accepts EDO & SDRAM memory.

CACHE CONFIGURATION

Size

Bank 0

512KB

(1) 64K x 64

VIDEO MEMORY CONFIGURATION

Note: The video memory is factory installed and is not configurable.

CPU SPEED SELECTION (CX 6X86MX)

CPU speed

Clock speed

Multiplier

JP18

JP19

JP20

200MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

233MHz

75MHz

2.5x

1 & 2

2 & 3

2 & 3

266MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

266MHz

75MHz

3x

1 & 2

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (CX 6X86MX, CON'T)

CPU speed

Clock speed

Multiplier

S1/1

S1/2

S1/3

S1/4

S1/5

200MHz

66MHz

2.5x

Off

Off

Off

On

On

233MHz

66MHz

3x

Off

Off

Off

Off

On

233MHz

75MHz

2.5x

Off

Off

Off

On

On

266MHz

66MHz

3.5x

Off

Off

Off

Off

Off

266MHz

75MHz

3x

Off

Off

Off

Off

On

CPU SPEED SELECTION (AM K6)

CPU speed

Clock speed

Multiplier

JP18

JP19

JP20

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

266MHz

66MHz

4x

1 & 2

1 & 2

1 & 2

300MHz

66MHz

4.5x

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AM K6, CON'T)

CPU speed

Clock speed

Multiplier

S1/1

S1/2

S1/3

S1/4

S1/5

166MHz

66MHz

2.5x

Off

Off

Off

On

On

200MHz

66MHz

3x

Off

Off

Off

Off

On

233MHz

66MHz

3.5x

Off

Off

Off

Off

Off

266MHz

66MHz

4x

Off

Off

Off

On

Off

300MHz

66MHz

4.5x

Off

Off

Off

On

On

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP18

JP19

JP20

90MHz

60MHz

1.5x

2 & 3

1 & 2

1 & 2

100MHz

66MHz

1.5x

1 & 2

1 & 2

1 & 2

120MHz

60MHz

2x

2 & 3

1 & 2

1 & 2

133MHz

66MHz

2x

1 & 2

1 & 2

1 & 2

150MHz

60MHz

2.5x

2 & 3

1 & 2

1 & 2

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL, CON'T)

CPU speed

Clock speed

Multiplier

S1/1

S1/2

S1/3

S1/4

S1/5

90MHz

60MHz

1.5x

On

Off

Off

Off

Off

100MHz

66MHz

1.5x

Off

Off

Off

Off

Off

120MHz

60MHz

2x

On

Off

Off

On

Off

133MHz

66MHz

2x

Off

Off

Off

On

Off

150MHz

60MHz

2.5x

On

Off

Off

On

On

166MHz

66MHz

2.5x

Off

Off

Off

On

On

200MHz

66MHz

3x

Off

Off

Off

Off

On

CPU SPEED SELECTION (INTEL MMX)

CPU speed

Clock speed

Multiplier

JP18

JP19

JP20

166MHz

66MHz

2.5x

1 & 2

1 & 2

1 & 2

200MHz

66MHz

3x

1 & 2

1 & 2

1 & 2

233MHz

66MHz

3.5x

1 & 2

1 & 2

1 & 2

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL MMX, CON'T)

CPU speed

Clock speed

Multiplier

S1/1

S1/2

S1/3

S1/4

S1/5

166MHz

66MHz

2.5x

Off

Off

Off

On

On

200MHz

66MHz

3x

Off

Off

Off

Off

On

233MHz

66MHz

3.5x

Off

Off

Off

Off

Off

Note: Pins designated should be in the closed position.

CPU TYPE SELECTION

Type

JP1

JP2

JP14

P54C

Pins 2 & 3 closed

Closed

Open

P55C

Pins 2 & 3 closed

Open

Closed

AM K6

Pins 2 & 3 closed

Open

Closed

CX MII

Pins 2 & 3 closed

Open

Closed

AM K6-266

Pins 1 & 2 closed

Open

Closed

AM K6-300

Pins 1 & 2 closed

Open

Closed

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP5

»

3.3v

Pins 2 & 3 closed



3.52v

Pins 1 & 2 closed

CPU VOLTAGE SELECTION (DUAL)

Voltage

JP6

1.8v

Pins 9 & 10 closed

2.1v

Pins 7 & 8 closed

2.8v

Pins 5 & 6 closed

2.9v

Pins 3 & 4 closed

3.2v

Pins 1 & 2 closed
