Processor	8088
Processor Speed	4.77/10MHz
Chip Set	Unidentified
Video Chip Set	None
Maximum Onboard Memory	512KB
Maximum Video Memory	None
Cache	None
BIOS	Faraday
Dimensions	173mm x 107mm
I/O Options	None
NPU Options	8087

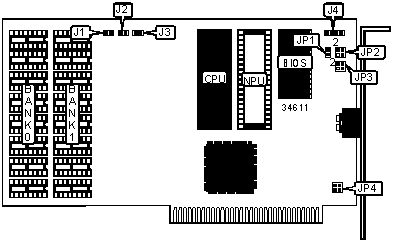

CONNECTIONS
Purpose	Location	Purpose	Location
Power LED	J1	Reset switch	J3
Speaker	J2	Auxiliary keyboard connector	J4

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(8) 41256	None
512KB	(8) 41256	(8) 41256

BIOS SELECTION
Setting	JP1	JP2	JP3
2764	Open	Pins 3 & 4 closed	Pins 3 & 4 closed
27128	Closed	Pins 3 & 4 closed	Pins 3 & 4 closed
27256	Closed	Pins 1 & 2 closed	Pins 3 & 4 closed
27512	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed

VIDEO SELECTION
Setting	JP4
Monochrome	Open
None, EGA, VGA	Pins 1 & 2, 3 & 4 closed
40 x 25 color	Pins 3 & 4 closed
80 x 25 color	Pins 1 & 2 closed
