ACTIVEI SYSTEMS, INC.

SARATOGA

Processor

CX M1/AM K5/Pentium

Processor Speed

75/90/100/120/133/150/166/200MHz

Chip Set

Intel

Video Chip Set

None

Maximum Onboard Memory

128MB (EDO supported)

Maximum Video Memory

None

Cache

256/512KB

BIOS

Award

Dimensions

254mm x 218mm

I/O Options

32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, VRM connector, USB connector

NPU Options

None

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

CN1

Speaker

J2

Serial port 1

CN2

Green PC connector

J3

Parallel port

CN3

Turbo LED

J4

Floppy drive interface

CN4

Reset switch

J5

IDE interface 1

CN5

IDE interface LED

J6

IDE interface 2

CN6

32-bit PCI slots

PC1 – PC4

PS/2 mouse interface

CN7

USB connector

USB

IR connector

IR1

VRM connector

VRM

Power LED & keylock

J1

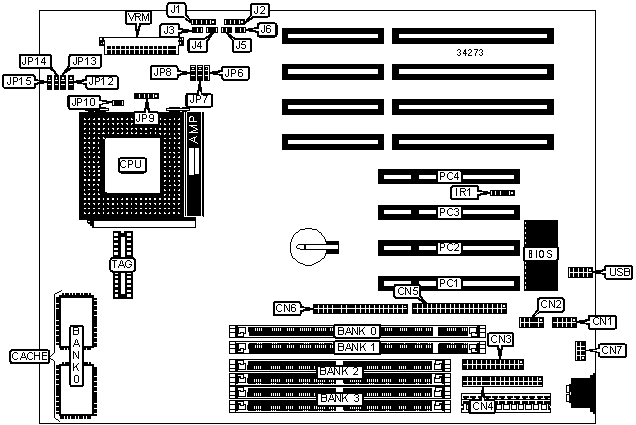

USER CONFIGURABLE SETTINGS

Function

Label

Position

»

CMOS memory normal operation

JP10

Open



CMOS memory clear

JP10

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

8MB

None

None

(2) 1M x 36

None

8MB

(1) 1M x 64

None

None

None

16MB

None

None

(2) 2M x 36

None

16MB

None

None

(2) 1M x 36

(2) 1M x 36

16MB

(1) 2M x 64

None

None

None

16MB

(1) 1M x 64

(1) 1M x 64

None

None

16MB

None

(1) 1M x 64

(2) 1M x 36

None

24MB

None

None

(2) 2M x 36

(2) 1M x 36

24MB

(1) 2M x 64

(1) 1M x 64

None

None

24MB

None

(1) 1M x 64

(2) 2M x 36

None

24MB

None

(1) 2M x 64

(2) 1M x 36

None

24MB

(1) 2M x 64

None

None

(2) 1M x 36

32MB

None

None

(2) 4M x 36

None

32MB

None

None

(2) 2M x 36

(2) 2M x 36

32MB

(1) 4M x 64

None

None

None

32MB

(1) 2M x 64

(1) 2M x 64

None

None

32MB

None

(1) 2M x 64

(2) 2M x 36

None

40MB

None

None

(2) 4M x 36

(2) 1M x 36

40MB

(1) 4M x 64

(1) 1M x 64

None

None

40MB

None

(1) 1M x 64

(2) 4M x 36

None

40MB

None

(1) 4M x 64

(2) 1M x 36

None

48MB

None

None

(2) 4M x 36

(2) 2M x 36

48MB

(1) 4M x 64

(1) 2M x 64

None

None

DIMM/DRAM CONFIGURATION (CON’T)

Size

Bank 0

Bank 1

Bank 2

Bank 3

48MB

None

(1) 2M x 64

(2) 4M x 36

None

48MB

None

(1) 4M x 64

(2) 2M x 36

None

64MB

None

None

(2) 8M x 36

None

64MB

None

None

(2) 4M x 36

(2) 4M x 36

64MB

(1) 8M x 64

None

None

None

64MB

(1) 4M x 64

(1) 4M x 64

None

None

64MB

None

(1) 4M x 64

(2) 4M x 36

None

72MB

None

None

(2) 8M x 36

(2) 1M x 36

72MB

(1) 8M x 64

(1) 1M x 64

None

None

72MB

None

(1) 1M x 64

(2) 8M x 36

None

72MB

None

(1) 8M x 64

(2) 1M x 36

None

80MB

None

None

(2) 8M x 36

(2) 2M x 36

80MB

(1) 8M x 64

(1) 2M x 64

None

None

80MB

None

(1) 2M x 64

(2) 8M x 36

None

80MB

None

(1) 8M x 64

(2) 2M x 36

None

96MB

None

None

(2) 8M x 36

(2) 4M x 36

96MB

(1) 8M x 64

(1) 4M x 64

None

None

96MB

None

(1) 4M x 64

(2) 8M x 36

None

96MB

None

(1) 8M x 64

(2) 4M x 36

None

128MB

None

None

(2) 8M x 36

(2) 8M x 36

128MB

(1) 8M x 64

(1) 8M x 64

None

None

128MB

None

(1) 8M x 64

(2) 8M x 36

None

Note: Board accepts EDO memory. Banks 2 & 3 are interchangeable if DIMMs are not installed.

CACHE CONFIGURATION

Size

Bank 0

TAG

256KB

(2) 32K x 32

Unidentified

512KB

(2) 64K x 32

Unidentified

CPU SPEED SELECTION (CYRIX)

CPU speed

Clock speed

Multiplier

JP6

JP7

JP8

JP9

120MHz

50MHz

2x

2 & 3

2 & 3

2 & 3

2 & 3

133MHz

55MHz

2x

2 & 3

1 & 2

2 & 3

2 & 3

150MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

2 & 3

166MHz

66MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)

CPU speed

Clock speed

Multiplier

JP6

JP7

JP8

JP9

75MHz

50MHz

1.5x

2 & 3

2 & 3

2 & 3

Open

90MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

Open

100MHz

66MHz

1.5x

1 & 2

2 & 3

2 & 3

Open

120MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

Open

133MHz

66MHz

1.5x

1 & 2

2 & 3

2 & 3

Open

150MHz

60MHz

1.75x

2 & 3

2 & 3

1 & 2

2 & 3, 4 & 5

166MHz

66MHz

1.75x

1 & 2

2 & 3

2 & 3

2 & 3, 4 & 5

Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)

CPU speed

Clock speed

Multiplier

JP6

JP7

JP8

JP9

75MHz

50MHz

1.5x

2 & 3

2 & 3

2 & 3

Open

90MHz

60MHz

1.5x

2 & 3

2 & 3

1 & 2

Open

100MHz

66MHz

1.5x

1 & 2

2 & 3

2 & 3

Open

120MHz

60MHz

2x

2 & 3

2 & 3

1 & 2

2 & 3

133MHz

66MHz

2x

1 & 2

2 & 3

2 & 3

2 & 3

150MHz

60MHz

2.5x

2 & 3

2 & 3

1 & 2

2 & 3, 4 & 5

166MHz

66MHz

2.5x

1 & 2

2 & 3

2 & 3

2 & 3, 4 & 5

200MHz

66MHz

3x

1 & 2

2 & 3

2 & 3

1 & 2, 4 & 5

Note: Pins designated should be in the closed position.

CPU VOLTAGE SELECTION (SINGLE)

Voltage

JP12

JP13

JP14

JP15

3.3v

Pins 1 & 2 closed

Pins 1 & 2 closed

Open

Open

3.5v

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Open

3.5v (K5 FX only)

Pins 1 & 2 closed

Pins 1 & 2 closed

Open

Open

CPU VOLTAGE SELECTION (DUAL)

Voltage

V core

JP12

JP13

JP14

JP15

3.3v

2.5v

2 & 3

2 & 3

2 & 3

2 & 3

3.3v

2.6v

2 & 3

2 & 3

2 & 3

1 & 2

3.3v

2.7v

2 & 3

2 & 3

1 & 2

2 & 3

3.3v

2.8v

2 & 3

2 & 3

Open

2 & 3

3.3v

2.9v

2 & 3

2 & 3

2 & 3

2 & 3

3.3v

3.2v

2 & 3

2 & 3

1 & 2

Open

Note: Pins designated should be in the closed position.
