ACER, INC.

V20-486 ALL IN ONE

Processor

AM486/80486SX/80486DX/80486DX2/80486DX4/P24D/P24T

Processor Speed

25/33/50(internal)/66(internal)/75(internal)/100(internal)MHz

Chip Set

ALI

Video Chip Set

None

Maximum Onboard Memory

Unidentified

Maximum Video Memory

None

Cache

128/256/512KB

BIOS

Acer

Dimensions

330mm x 218mm

I/O Options

32-bit VESA local bus slot, 32-bit PCI slots (2), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2)

NPU Options

None

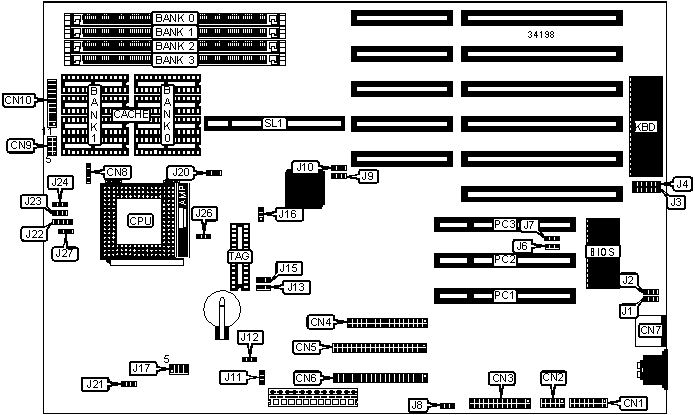

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

CN1

Reset switch

CN9 pins 7 & 8

Serial port 1

CN2

Power LED & keylock

CN10 pins 1 - 5

Parallel port

CN3

Speaker

CN10 pins 7 - 10

Floppy drive interface

CN4

Turbo LED

CN10 pins 12 & 13

IDE interface 1

CN5

Turbo switch

CN10 pins 15 - 17

IDE interface 2

CN6

Reset switch

CN10 pins 19 & 20

PS/2 mouse port

CN7

32-bit PCI slots

PC11 - PC3

IDE interface LED

CN8

32-bit VESA local bus slot

SL1

Power LED & keylock

CN9 pins 1 - 4



USER CONFIGURABLE SETTINGS

Function

Label

Position

»

Password enabled

J1

Pins 1 & 2 closed



Password disabled

J1

Pins 2 & 3 closed

»

BIOS type select Acer

J2

Pins 1 & 2 closed



BIOS type select OEM

J2

Pins 2 & 3 closed

»

Factory configured - do not alter

J3

Pins 3 & 4 closed

»

Factory configured - do not alter

J4

Closed

»

Factory configured - do not alter

J6

Pins 2 & 3 closed

»

Factory configured - do not alter

J7

Pins 2 & 3 closed

»

M5115 I/O enabled

J8

Pins 1 & 2 closed



M5115 I/O disabled

J8

Pins 2 & 3 closed

»

Factory configured - do not alter

J10

Pins 1 & 2 closed

»

Local bus IDE I/O address select 0FXH

J11

Pins 1 & 2 closed



Local bus IDE I/O address select 07XH

J11

Pins 2 & 3 closed

»

Local bus IDE enabled

J12

Pins 2 & 3 closed



Local bus IDE disabled

J12

Pins 1 & 2 closed

»

Reset switch enabled

J23

Pins 1 & 2 closed



Reset switch disabled

J23

Pins 2 & 3 closed

»

Green PC connector disabled

J24

Pins 1 & 2 closed



Green PC connector enabled

J24

Pins 2 & 3 closed

DRAM CONFIGURATION

Note: The maximum amount of memory is unidentified.

CACHE CONFIGURATION

Size

Bank 0

Bank 1

TAG

128KB

(4) 32K x 8

None

(1) 32K x 8

256KB

(4) 32K x 8

(4) 32K x 8

(1) 32K x 8

512KB

(4) 128K x 8

None

(1) 32K x 8

CACHE JUMPER CONFIGURATION

Size

J13

J15

J16

128KB

Pins 2 & 3 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

256KB

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

512KB

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

CPU SPEED SELECTION

Speed

JP17

JP21

25MHz

Pins 1 & 5 closed

Pins 2 & 3 closed

33MHz

Pins 2 & 6 closed

Pins 2 & 3 closed

50iMHz

Pins 1 & 5 closed

Pins 2 & 3 closed

66iMHz

Pins 2 & 6 closed

Pins 2 & 3 closed

75iMHz

Pins 1 & 5 closed

Pins 2 & 3 closed

100iMHz

Pins 2 & 6 closed

Pins 2 & 3 closed

CPU TYPE SELECTION

Type

J9

J20

Intel S-series

Pins 2 & 3 closed

Pins 1 & 2 closed

P24D

Pins 1 & 2 closed

Pins 2 & 3 closed

P24T

Pins 1 & 2 closed

Pins 2 & 3 closed

CPU TYPE SELECTION

Type

J26

J27

Intel

Pins 1 & 2 closed

Pins 1 & 2 closed

AMD

Pins 2 & 3 closed

Pins 2 & 3 closed

CPU MULTIPLIER SELECTION

Multiplier

J22

2x

Pins 3 & 4 closed

2.5x

Pins 2 & 3 closed

3x

Pins 1 & 2 closed
