Processor	CX M1/AM K5/Pentium
Processor Speed	75/90/100/120/133/150/166/180/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	512MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	AMI
Dimensions	330mm x 221mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), SCSI interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, VRM connector
NPU Options	None

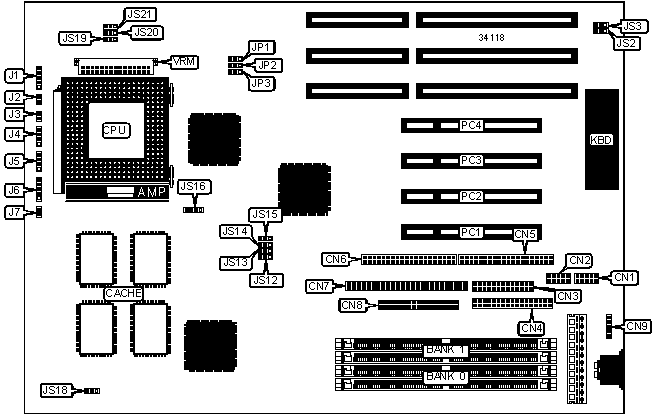

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1	CN1	IR connector	J1
Serial port 2	CN2	Green PC connector	J2
Parallel port	CN3	Reset switch	J3
Floppy drive interface	CN4	Speaker	J4
IDE interface 2	CN5	IDE interface LED	J5
IDE interface 1	CN6	Power LED & keylock	J6
Fast SCSI interface	CN7	Turbo LED	J7
Ultra SCSI interface	CN8	32-bit PCI slots	PC1 - PC4
PS/2 mouse interface	CN9	VRM connector	VRM

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Monitor type select color	JP1	Pins 1 & 2 closed
	Monitor type select monochrome	JP1	Pins 2 & 3 closed
»	Password normal operation	JP2	Pins 2 & 3 closed
	Password clear	JP2	Pins 1 & 2 closed
	Flash BIOS voltage select 12v	JP3	Pins 1 & 2 closed
	Flash BIOS voltage select 5v	JP3	Pins 2 & 3 closed
»	CMOS memory normal operation	JS2	Pins 2 & 3 closed
	CMOS memory clear	JS2	Pins 1 & 2 closed
»	PS/2 mouse enabled	JS3	Pins 1 & 2 closed
	PS/2 mouse disabled	JS3	Pins 2 & 3 closed
»	SCSI bus data width select Fast 8-bit	JS15	Pins 2 & 3 closed
	SCSI bus data width select Fast & wide 16-bit	JS15	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
8MB	(2) 1M x 36	None
16MB	(2) 1M x 36	(2) 1M x 36
16MB	(2) 2M x 36	None
32MB	(2) 2M x 36	(2) 2M x 36
32MB	(2) 4M x 36	None
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB	(2) 4M x 36	(2) 4M x 36
64MB	(2) 8M x 36	None
80MB	(2) 2M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
512MB	(2) 32M x 36	(2) 32M x 36
Note: Board accepts EDO memory. Board also accepts x 32 SIMMs.

CACHE CONFIGURATION
Size	Bank 0	Bank 1
256KB	(2) 32K x 32	None
512KB	(2) 32K x 32	(2) 32K x 32
Note: The location of banks 0 & 1 are unidentified.

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	JS12	JS13	JS14	JS16
120MHz	50MHz	1.5x	1 & 2	2 & 3	2 & 3	Open
150MHz	60MHz	2x	1 & 2	1 & 2	1 & 2	3 & 4
166MHz	66MHz	2x	2 & 3	2 & 3	1 & 2	3 & 4
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (AMD)
CPU speed	Clock speed	Multiplier	JS12	JS13	JS14	JS16
75MHz	50MHz	1.5x	1 & 2	2 & 3	2 & 3	Open
90MHz	60MHz	1.5x	1 & 2	1 & 2	1 & 2	Open
100MHz	66MHz	1.5x	2 & 3	2 & 3	1 & 2	Open
Note: Pins designated should be in the closed position.

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	JS12	JS13	JS14	JS16
75MHz	50MHz	1.5x	1 & 2	2 & 3	2 & 3	Open
90MHz	60MHz	1.5x	1 & 2	1 & 2	1 & 2	Open
100MHz	66MHz	1.5x	2 & 3	2 & 3	1 & 2	Open
120MHz	60MHz	2x	1 & 2	1 & 2	1 & 2	3 & 4
133MHz	66MHz	2x	2 & 3	2 & 3	1 & 2	3 & 4
150MHz	60MHz	2.5x	1 & 2	1 & 2	1 & 2	1 & 2, 3 & 4
166MHz	66MHz	2.5x	2 & 3	2 & 3	1 & 2	1 & 2, 3 & 4
180MHz	60MHz	3x	1 & 2	1 & 2	1 & 2	1 & 2
200MHz	66MHz	3x	2 & 3	2 & 3	1 & 2	1 & 2
Note: Pins designated should be in the closed position.

CPU TYPE SELECTION
Type	JS18	JS19	JS20	JS21
Cyrix	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
AMD	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
P54C	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
P55C	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
