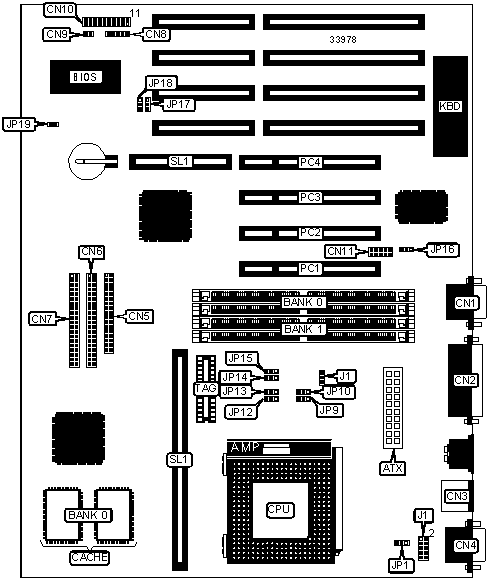

ASUS COMPUTER INTERNATIONAL
P/I-XP55T2P4 (REV. 3.00)
Processor |
CX M1/AM K5/Pentium |
Processor Speed |
75/90/100/120/133/150/166/200MHz |
Chip Set |
Intel |
Video Chip Set |
None |
Maximum Onboard Memory |
256MB (EDO supported) |
Maximum Video Memory |
None |
Cache |
256/512KB |
BIOS |
Unidentified |
Dimensions |
330mm x 218mm |
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), cache slot, IR connector, USB connector, ATX power connector, MediaBus slot |
NPU Options |
None |
CONNECTIONS |
|||
Purpose |
Location |
Purpose |
Location |
ATX power connector |
ATX |
Power LED & keylock |
CN10 pins 1 - 5 |
Serial port 2 |
CN1 |
Speaker |
CN10 pins 7 - 10 |
Parallel port |
CN2 |
Power LED |
CN10 pins 12 & 13 |
PS/2 mouse port |
CN3 |
Green PC connector |
CN10 pins 14 & 15 |
Serial port 1 |
CN4 |
ATX power switch |
CN10 pins 16 & 17 |
Floppy drive interface |
CN5 |
Reset switch |
CN10 pins 19 & 20 |
IDE interface 2 |
CN6 |
USB connector |
CN11 |
IDE interface 1 |
CN7 |
32-bit PCI slots |
PC1 - PC4 |
IR connector |
CN8 |
Cache slot |
SL1 |
IDE interface LED |
CN9 |
MediaBus slot |
SL2 |
USER CONFIGURABLE SETTINGS |
|||
Function |
Label |
Position |
|
» |
Factory configured - do not alter |
J1 |
Unidentified |
» |
On board I/O enabled |
JP16 |
Pins 1 & 2 closed |
|
On board I/O disabled |
JP16 |
Pins 2 & 3 closed |
» |
CMOS memory normal operation |
JP17 |
Pins 1 & 2 closed |
|
CMOS memory clear |
JP17 |
Pins 2 & 3 closed |
» |
Flash BIOS write protect disabled |
JP18 |
Pins 1 & 2 closed |
|
Flash BIOS write protect enabled |
JP18 |
Pins 2 & 3 closed |
» |
Battery test mode normal operation |
JP19 |
Closed |
|
Battery test mode test mode enabled |
JP19 |
Open |
DRAM CONFIGURATION |
||
Size |
Bank 0 |
Bank 1 |
8MB |
(2) 1M x 36 |
None |
16MB |
(2) 2M x 36 |
None |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
24MB |
(2) 2M x 36 |
(2) 1M x 36 |
32MB |
(2) 4M x 36 |
None |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
40MB |
(2) 4M x 36 |
(2) 1M x 36 |
48MB |
(2) 4M x 36 |
(2) 2M x 36 |
64MB |
(2) 8M x 36 |
None |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
72MB |
(2) 8M x 36 |
(2) 1M x 36 |
80MB |
(2) 8M x 36 |
(2) 2M x 36 |
96MB |
(2) 8M x 36 |
(2) 4M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
128MB |
(2) 16M x 36 |
None |
136MB |
(2) 16M x 36 |
(2) 1M x 36 |
DRAM CONFIGURATION (CON'T) |
||
Size |
Bank 0 |
Bank 1 |
144MB |
(2) 16M x 36 |
(2) 2M x 36 |
160MB |
(2) 16M x 36 |
(2) 4M x 36 |
192MB |
(2) 16M x 36 |
(2) 8M x 36 |
256MB |
(2) 16M x 36 |
(2) 16M x 36 |
Note: Board accepts EDO memory. Banks are interchangeable. |
CACHE CONFIGURATION |
|||
Size |
Bank 0 |
Bank 1 |
TAG |
256KB (A) |
None |
256KB module installed |
Unidentified |
256KB (B) |
(2) 32K x 32 |
Not installed |
Unidentified |
512KB (A) |
(2) 32K x 32 |
256KB module installed |
Unidentified |
512KB (B) |
None |
512KB module installed |
Unidentified |
512KB (C) |
(2) 64K x 32 |
Not installed |
Unidentified |
CACHE JUMPER CONFIGURATION |
|
Size |
JP14 |
256KB (A) |
Pins 1 & 2 closed |
256KB (B) |
Pins 1 & 2 closed |
512KB (A) |
Pins 2 & 3 closed |
512KB (B) |
Pins 2 & 3 closed |
512KB (C) |
Pins 2 & 3 closed |
CACHEABLE SIZE CONFIGURATION |
||
Size |
JP15 |
|
» |
64MB |
Pins 1 & 2 closed |
|
512MB |
Pins 2 & 3 closed |
CPU SPEED SELECTION (CYRIX) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP9 |
JP10 |
JP12 |
JP13 |
166MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU SPEED SELECTION (AMD) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP9 |
JP10 |
JP12 |
JP13 |
75MHz |
50MHz |
1.5x |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
90MHz |
60MHz |
1.5x |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
100MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
1 & 2 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU SPEED SELECTION (INTEL) |
||||||
CPU speed |
Clock speed |
Multiplier |
JP9 |
JP10 |
JP12 |
JP13 |
75MHz |
50MHz |
1.5x |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
90MHz |
60MHz |
1.5x |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
100MHz |
66MHz |
1.5x |
1 & 2 |
2 & 3 |
1 & 2 |
1 & 2 |
120MHz |
60MHz |
2x |
2 & 3 |
1 & 2 |
2 & 3 |
1 & 2 |
133MHz |
66MHz |
2x |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
150MHz |
60MHz |
2.5x |
2 & 3 |
1 & 2 |
2 & 3 |
2 & 3 |
166MHz |
66MHz |
2.5x |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
200MHz |
66MHz |
3x |
1 & 2 |
2 & 3 |
1 & 2 |
2 & 3 |
Note: Pins designated should be in the closed position. |
CPU VOLTAGE SELECTION (SINGLE) |
|
Voltage |
JP1 |
3.3v - 3.465v (STD) |
Pins 1 & 2 closed |
3.4v - 3.6v (VRE) |
Pins 2 & 3 closed |
CPU VOLTAGE SELECTION (DUAL) |
|
Voltage |
J2 |
2.5v |
Pins 1 & 2 closed |
2.7v |
Pins 3 & 4 closed |
2.8v |
Pins 5 & 6 closed |
2.9v |
Pins 7 & 8 closed |
