ADVANCED DIGITAL CORPORATION
PC II
|
Processor |
80188 (2) |
|
Processor Speed |
8MHz |
|
Video Chipset |
Unidentified |
|
Chipset |
Unidentified |
|
Maximum Onboard Memory |
1MB DRAM (512KB per processor) |
|
BIOS |
Unidentified |
|
Dimensions |
336.6 x 111.1mm |
|
I/O Options |
Video ports (1 per processor) |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
Text only |
|

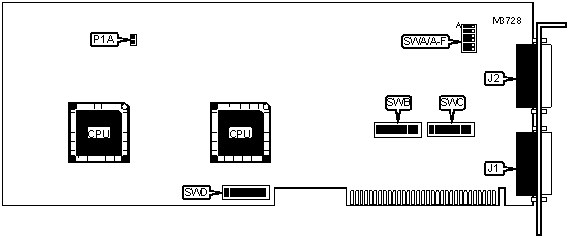

CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Video and keyboard for machine 1 |
J1 |
12V DC power out |
P1A |
|
Video and keyboard for machine 2 |
J2 |
|
|
|
Note:Standard video and keyboard connectors are provided on an external adapter box. |
|||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Label |
Position |
|
|
» |
Factory configured - do not alter |
SWA/A |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
SWA/B |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
SWA/C |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
SWA/D |
Pins 1 & 2 closed |
|
» |
Factory configured - do not alter |
SWA/E |
Pins 2 & 3 closed |
|
» |
Factory configured - do not alter |
SWA/F |
Pins 2 & 3 closed |
|
» |
Interrupt terminator enabled |
SWD/5 |
On |
|
|
Interrupt terminator disabled |
SWD/5 |
Off |
|
» |
Factory configured - do not alter |
SWD/6 |
Off |
|
» |
Factory configured - do not alter |
SWD/7 |
Off |
|
» |
Factory configured - do not alter |
SWD/8 |
Off |
|
BASE I/O ADDRESS SELECTION |
|||||||||
|
Setting |
SWB/1 |
SWB/2 |
SWB/3 |
SWB/4 |
SWB/5 |
SWB/6 |
SWB/7 |
SWB/8 |
|
|
|
200h |
On |
On |
On |
On |
On |
On |
On |
On |
|
|
202h |
Off |
On |
On |
On |
On |
On |
On |
On |
|
|
204h |
On |
Off |
On |
On |
On |
On |
On |
On |
|
|
206h |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
|
208h |
On |
On |
Off |
On |
On |
On |
On |
On |
|
» |
230h |
On |
On |
On |
Off |
Off |
On |
On |
On |
|
|
3F6h |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
|
3F8h |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
3FAh |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
3FCh |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
3FEh |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note: A total of 256 base address settings are available. The switches are a binary representation of the decimal memory addresses. SWB/8 is the Most Significant Bit and switch SWB/1 is the Least Significant Bit. The switches have the following decimal values: SWB/1=2, SWB/2=4, SWB/3=8, SWB/4=16, SWB/5=32, SWB/6=64, SWB/7=128, SWB/8=256. Turn off the switches and add the values of the switches that are off to 512 to obtain the correct memory address. (Off=1, On=0) |
|||||||||
|
SHARED RAM ADDRESS |
|||||||||
|
Setting |
SWC/1 |
SWC/2 |
SWC/3 |
SWC/4 |
SWC/5 |
SWC/6 |
SWC/7 |
SWC/8 |
|
|
|
00000h |
On |
On |
On |
On |
On |
On |
On |
On |
|
|
01000h |
Off |
On |
On |
On |
On |
On |
On |
On |
|
|
02000h |
On |
Off |
On |
On |
On |
On |
On |
On |
|
|
03000h |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
|
04000h |
On |
On |
Off |
On |
On |
On |
On |
On |
|
» |
C0000h |
On |
On |
On |
On |
On |
On |
Off |
Off |
|
|
FB000h |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
|
FC000h |
On |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
FD000h |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
FE000h |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
|
FF000h |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Note: A total of 256 base address settings are available. The switches are a binary representation of the decimal memory addresses. SWC/8 is the Most Significant Bit and switch SWC/1 is the Least Significant Bit. The switches have the following decimal values: SWC/8=524,288, SWC/7=262,144, SWC/6=131,072, SWC/5=65,536, SWC/4=32,768, SWC/3=16,384, SWC/2=8,192, SWC/1=4,096. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0) |
|||||||||
|
INTERRUPT SELECTION |
|||||
|
Setting |
SWD/1 |
SWD/2 |
SWD/3 |
SWD/4 |
|
|
|
IRQ2 |
On |
Off |
Off |
Off |
|
» |
IRQ3 |
Off |
On |
Off |
Off |
|
|
IRQ4 |
Off |
Off |
On |
Off |
|
|
IRQ5 |
Off |
Off |
Off |
On |

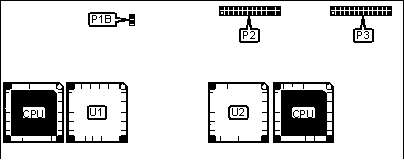

PC II (SERIAL DAUGHTERBOARD)
|
Processor |
80188 (2) |
|
Processor Speed |
8MHz |
|
I/O Options |
Serial ports (1 per processor) |
|
CONNECTIONS |
|||
|
Function |
Label |
Function |
Label |
|
Serial port for machine 1 |
P2 |
Header to main board CPU socket (on back of board) |
U1 |
|
Serial port for machine 2 |
P3 |
Header to main board CPU socket (on back of board) |
U2 |
|
12V DC power in from main board (on back of board) |
P1B |
|
|
|
MISCELLANEOUS TECHNICAL NOTES |
|
Remove the CPUs from the main card, and install them into the daughterboard's sockets. |
