Processor	80386DX
Processor Speed	25/33/40MHz
Chip Set	OPTI
Video Chip Set	None
Maximum Onboard Memory	32MB
Maximum Video Memory	None
Cache	None
BIOS	AMI
Dimensions	220mm x 220mm
I/O Options	None
NPU Options	80387DX/3167

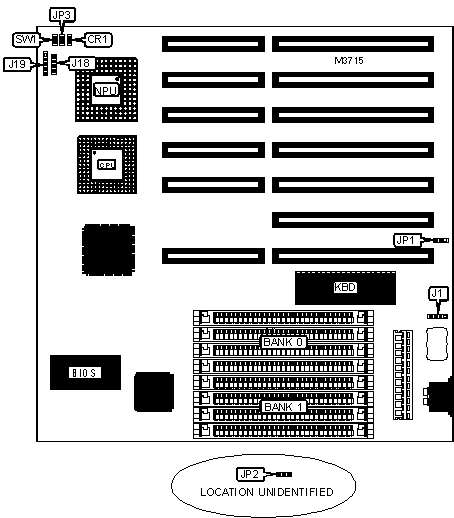

CONNECTIONS
Purpose	Location	Purpose	Location
Turbo LED	CR1	Speaker	J18
External battery	J1	Power LED & keylock	J19
Turbo switch	JP3	Reset switch	SW1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JP1	Pins 2 & 3 closed
	CMOS memory clear	JP1	Pins 1 & 2 closed
	Monitor type select color	JP2	Pins 2 & 3 closed
	Monitor type select monochrome	JP2	Pins 1 & 2 closed
	Turbo enabled	JP3	Open
	Turbo disabled	JP3	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	None
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	None
5MB	(4) 256K x 9	(4) 1M x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	None
32MB	(4) 4M x 9	(4) 4M x 9
