Processor	Pentium
Processor Speed	90/100MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	512MB
Maximum Video Memory	None
Cache	256/512KB
BIOS	AMI
Dimensions	332mm x 221mm
I/O Options	32-bit PCI slots (3), floppy drive interface, SCSI interfaces (2), parallel port, serial ports (2)
NPU Options	None

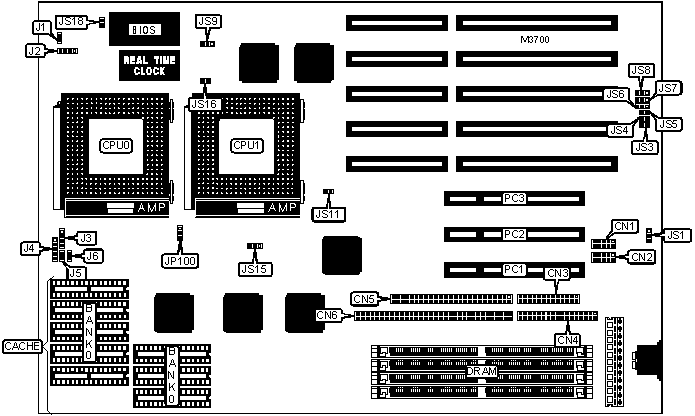

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port	CN1	Speaker	J2
Serial port	CN2	SCSI interface LED	J3
Parallel port	CN3	Power LED & keylock	J4
Floppy drive interface	CN4	Turbo switch	J5
SCSI-2 interface	CN5	Turbo LED	J6
Wide SCSI-2 interface	CN6	32-bit PCI slots	PC1 - PC3
Reset switch	J1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	CMOS memory normal operation	JS3	Open
	CMOS memory clear	JS3	Closed
»	Parallel port IRQ select IRQ7	JS6	Pins 2 & 3 closed
	Parallel port IRQ select IRQ5	JS6	Pins 1 & 2 closed
»	Flash BIOS normal operation	JS9	Pins 2 & 3 closed
	Flash BIOS programming mode	JS9	Pins 1 & 2 closed
»	Monitor type select monochrome/EGA/VGA	JS16	Closed
	Monitor type select CGA	JS16	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(2) 256K x 36	None
4MB	(2) 256K x 36	(2) 256K x 36
4MB	(2) 512K x 36	None
6MB	(2) 256K x 36	(2) 512K x 36
8MB	(2) 512K x 36	(2) 512K x 36
8MB	(2) 1M x 36	None
10MB	(2) 256K x 36	(2) 1M x 36
12MB	(2) 512K x 36	(2) 1M x 36
16MB	(2) 1M x 36	(2) 1M x 36
16MB	(2) 2M x 36	None
18MB	(2) 256K x 36	(2) 2M x 36
20MB	(2) 512K x 36	(2) 2M x 36
24MB	(2) 1M x 36	(2) 2M x 36
32MB	(2) 2M x 36	(2) 2M x 36
32MB	(2) 4M x 36	None
34MB	(2) 256K x 36	(2) 4M x 36
36MB	(2) 512K x 36	(2) 4M x 36
40MB	(2) 1M x 36	(2) 4M x 36
48MB	(2) 2M x 36	(2) 4M x 36
64MB	(2) 4M x 36	(2) 4M x 36
64MB	(2) 8M x 36	None
64MB	(2) 8M x 36	None
66MB	(2) 256K x 36	(2) 8M x 36
68MB	(2) 512K x 36	(2) 8M x 36
72MB	(2) 1M x 36	(2) 8M x 36
80MB	(2) 2M x 36	(2) 8M x 36
96MB	(2) 4M x 36	(2) 8M x 36
128MB	(2) 8M x 36	(2) 8M x 36
128MB	(2) 16M x 36	None

DRAM CONFIGURATION (CON'T)
Size	Bank 0	Bank 1
160MB	(2) 16M x 36	(2) 4M x 36
192MB	(2) 16M x 36	(2) 8M x 36
256MB	(2) 16M x 36	(2) 16M x 36
256MB	(2) 32M x 36	None
512MB	(2) 32M x 36	(2) 32M x 36
Note: The location of banks 0 & 1 are unidentified.

CACHE CONFIGURATION
Size	Bank 0
256KB	(8) 32K x 8
512KB	(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size	JS15
256KB	Pins 1 & 2 closed
512KB	Pins 2 & 3 closed

CPU SPEED SELECTION
CPU speed	Clock speed	Multiplier	JS18
90MHz	60MHz	1.5x	Open
100MHz	66MHz	1.5x	Closed

CPU TYPE SELECTION
Type		JP100
»	VR (3.37v)	Pins 2 & 3 closed
	VRE (3.53v)	Pins 1 & 2 closed

DMA CHANNEL SELECTION
Channel		JS5	JS7	JS8
»	Normal mode	Open	Open	Open
	1	Closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	3	Closed	Pins 2 & 3 closed	Pins 2 & 3 closed

FLOPPY DRIVE SELECTION
Setting		JS1	JS4
»	Normal	Open	Open
	Enhanced	Closed	Pins 2 & 3 closed

SCSI SELECTION
Setting		JS11
»	8-bit Fast	Open
	8-bit/16-bit Fast-Wide	Closed
	16-bit Fast Wide	Closed
