AQUARIUS SYSTEMS, INC.
MB-5ATR
|
Processor |
CX M1/AM K5/Pentium |
|
Processor Speed |
75/90/100/120/133/150/166/180/200MHz |
|
Chip Set |
Intel |
|
Max. Onboard DRAM |
512MB |
|
Cache |
256/512KB |
|
BIOS |
AMI |
|
Dimensions |
330mm x 220mm |
|
I/O Options |
32-bit PCI slots (4), floppy drive interface, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), VGA feature connector, VGA interface, VRM connector, cache slot |
|
NPU Options |
None |
|

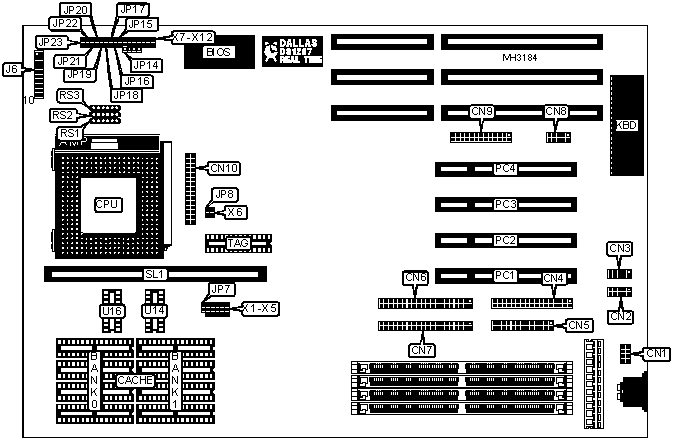

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
PS/2 mouse interface |
CN1 |
VRM connector |
CN10 |
|
Serial port 1 |
CN2 |
Power LED & keylock |
J6 pins 1 - 5 |
|
Serial port 2 |
CN3 |
Turbo LED |
J6 pins 7 & 17 |
|
Floppy drive interface |
CN4 |
Reset switch |
J6 pins 8 & 18 |
|
Parallel port |
CN5 |
Speaker |
J6 pins 11 - 14 |
|
IDE interface 1 |
CN6 |
IDE interface LED |
J6 pins 19 & 20 |
|
IDE interface 2 |
CN7 |
Cache slot |
SL1 |
|
VGA interface |
CN8 |
32-bit PCI slots |
PC1 - PC4 |
|
VGA feature connector |
CN9 |
|
|
|
Note: CN9 & CN10 may not be present on all boards. |
|||
|
USER CONFIGURABLE SETTINGS |
|||
|
Function |
Jumper |
Position |
|
|
|
|
X1 - X12 |
N/A |
|
» |
CMOS memory normal operation |
JP15 |
Open |
|
|
CMOS memory clear |
JP15 |
Closed |
|
DRAM CONFIGURATION |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
2MB |
(1) 256K x 36 |
(1) 256K x 36 |
NONE |
NONE |
|
4MB |
(1) 512K x 36 |
(1) 512K x 36 |
NONE |
NONE |
|
4MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 256K x 36 |
|
6MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
8MB |
(1) 1M x 36 |
(1) 1M x 36 |
NONE |
NONE |
|
8MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 512K x 36 |
|
10MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
12MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
16MB |
(1) 2M x 36 |
(1) 2M x 36 |
NONE |
NONE |
|
16MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 1M x 36 |
|
18MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
20MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
24MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
32MB |
(1) 4M x 36 |
(1) 4M x 36 |
NONE |
NONE |
|
32MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 2M x 36 |
|
34MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
36MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
40MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
48MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
64MB |
(1) 8M x 36 |
(1) 8M x 36 |
NONE |
NONE |
|
64MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 4M x 36 |
|
66MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
68MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
72MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
80MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
DRAM CONFIGURATION (CON'T) |
||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
96MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 8M x 36 |
|
128MB |
(1) 16M x 36 |
(1) 16M x 36 |
NONE |
NONE |
|
130MB |
(1) 256K x 36 |
(1) 256K x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
132MB |
(1) 512K x 36 |
(1) 512K x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
136MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
144MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
160MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
192MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
256MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 16M x 36 |
|
256MB |
(1) 32M x 36 |
(1) 32M x 36 |
NONE |
NONE |
|
264MB |
(1) 1M x 36 |
(1) 1M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
|
272MB |
(1) 2M x 36 |
(1) 2M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
|
288MB |
(1) 4M x 36 |
(1) 4M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
|
320MB |
(1) 8M x 36 |
(1) 8M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
|
384MB |
(1) 16M x 36 |
(1) 16M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
|
512MB |
(1) 32M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
(1) 32M x 36 |
|
Note: The exact location of the banks is unidentified. |
||||
|
CACHE CONFIGURATION (ASYNCHRONOUS) |
|||
|
Size |
Bank 0 |
Bank 1 |
TAG |
|
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 16K/32K/64K x 8 |
|
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 16K/32K/64K x 8 |
|
CACHE CONFIGURATION (SYNCHRONOUS) |
|||
|
Size |
U14 |
U16 |
SL1 |
|
256KB |
(1) 32K x 32 |
(1) 32K x 32 |
Not installed |
|
256KB |
NONE |
NONE |
Installed |
|
512KB |
(1) 32K x 32 |
(1) 32K x 32 |
Installed |
|
Note: If synchronous cache is used, remove all chips from Bank 0, Bank 1 and TAG. |
|||
|
CACHE JUMPER CONFIGURATION |
|
|
Size |
JP8 |
|
256KB |
Open |
|
512KB |
Closed |
|
CPU TYPE CONFIGURATION |
||||
|
Type |
JP7 |
RS1 |
RS2 |
RS3 |
|
CX M1 |
Closed |
Not installed |
Installed |
Not installed |
|
AM K5 |
Open |
Not installed |
Not installed |
Installed |
|
Pentium |
Open |
Installed |
Not installed |
Not installed |
|
Note: JP7 is used only if U14 & U16 are installed. |
||||
|
CPU SPEED CONFIGURATION |
||||
|
Speed |
JP17 |
JP18 |
JP19 |
JP20 |
|
75MHz |
Closed |
Closed |
Open |
Open |
|
90MHz |
Open |
Closed |
Open |
Open |
|
100MHz |
Closed |
Open |
Open |
Open |
|
120MHz |
Open |
Closed |
Closed |
Open |
|
133MHz |
Closed |
Open |
Closed |
Open |
|
150MHz |
Open |
Closed |
Closed |
Closed |
|
166MHz |
Closed |
Open |
Closed |
Closed |
|
180MHz |
Open |
Closed |
Open |
Closed |
|
200MHz |
Closed |
Open |
Open |
Closed |
|
CPU VOLTAGE CONFIGURATION |
||||
|
Voltage |
JP21 |
JP22 |
JP23 |
|
|
» |
3.3v |
Closed |
Open |
Open |
|
» |
3.4v |
Open |
Closed |
Open |
|
» |
3.6v |
Open |
Open |
Closed |
|
VIDEO CONFIGURATION |
|||
|
Setting |
JP14 |
JP16 |
|
|
» |
Enabled |
pins 2 & 3 closed |
Closed |
|
» |
Disabled |
pins 2 & 3 closed |
Open |
