ASUS COMPUTER INTERNATIONAL
PCI/I-P5SP4
Processor |
Pentium |
Processor Speed |
60/66MHz |
Chip Set |
SIS |
Max. Onboard DRAM |
128MB |
Cache |
256/512/1024KB |
BIOS |
Unidentified |
Dimensions |
330mm x 218mm |
I/O Options |
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2) |
NPU Options |
None |

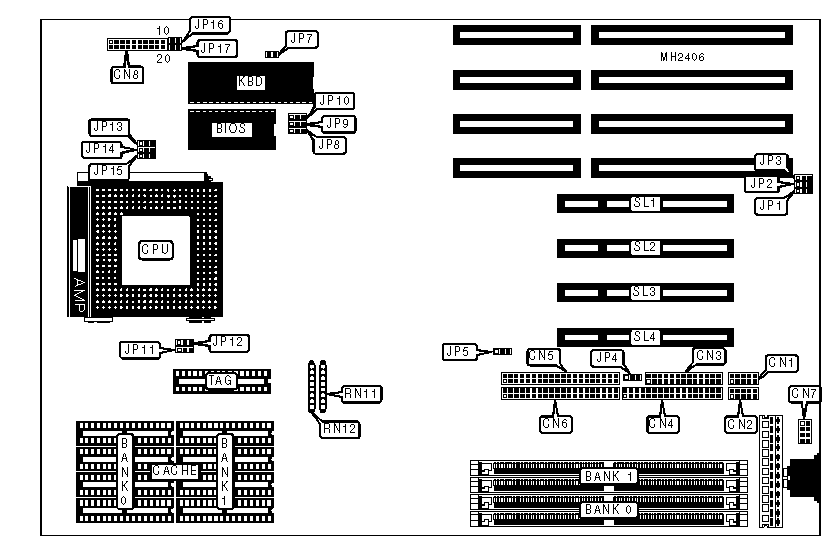

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
Serial port 2 |
CN1 |
Turbo LED |
CN8 (pins 12 - 13) |
Serial port 1 |
CN2 |
Green PC connector |
CN8 (pins 14 - 15) |
Parallel port |
CN3 |
Turbo switch |
CN8 (pins 16 - 17) |
Floppy drive interface |
CN4 |
Reset switch |
CN8 (pins 19 - 20) |
IDE interface |
CN5 |
Green PC connector |
JP4 |
IDE interface |
CN6 |
IDE interface LED |
JP16 |
PS/2 mouse interface |
CN7 |
IDE interface LED |
JP17 |
Power LED & keylock |
CN8 (pins 1 - 5) |
32-bit PCI slots |
SL1 - SL4 |
Speaker |
CN8 (pins 7 - 10) |
USER CONFIGURABLE SETTINGS | |||
Function |
Jumper |
Position | |
» |
On board I/O enabled |
JP3 |
pins 1 & 2 closed |
On board I/O disabled |
JP3 |
pins 2 & 3 closed | |
» |
IDE interface enabled |
JP5 |
pins 1 & 2 closed |
IDE interface disabled |
JP5 |
pins 2 & 3 closed | |
» |
Parity check enabled |
JP7 |
Closed |
Parity check disabled |
JP7 |
Open | |
» |
Mouse disabled |
JP8 |
pins 1 & 2 closed |
Mouse enabled |
JP8 |
pins 2 & 3 closed | |
» |
Flash BIOS write protect disabled |
JP9 |
pins 1 & 2 closed |
Flash BIOS write protect enabled |
JP9 |
pins 2 & 3 closed | |
» |
EPROM voltage select 5v |
JP10 |
pins 1 & 2 closed |
EPROM voltage select 12v |
JP10 |
pins 2 & 3 closed |
DRAM CONFIGURATION | ||
Size |
Bank 0 |
Bank 1 |
2MB |
(2) 256K x 36 |
NONE |
4MB |
(2) 256K x 36 |
(2) 256K x 36 |
4MB |
(2) 512K x 36 |
NONE |
8MB |
(2) 512K x 36 |
(2) 512K x 36 |
8MB |
(2) 1M x 36 |
NONE |
12MB |
(2) 512K x 36 |
(2) 1M x 36 |
16MB |
(2) 1M x 36 |
(2) 1M x 36 |
16MB |
(2) 2M x 36 |
NONE |
20MB |
(2) 512K x 36 |
(2) 2M x 36 |
24MB |
(2) 1M x 36 |
(2) 2M x 36 |
32MB |
(2) 2M x 36 |
(2) 2M x 36 |
32MB |
(2) 4M x 36 |
NONE |
36MB |
(2) 512K x 36 |
(2) 4M x 36 |
40MB |
(2) 1M x 36 |
(2) 4M x 36 |
48MB |
(2) 2M x 36 |
(2) 4M x 36 |
64MB |
(2) 4M x 36 |
(2) 4M x 36 |
64MB |
(2) 8M x 36 |
NONE |
72MB |
(2) 1M x 36 |
(2) 8M x 36 |
80MB |
(2) 2M x 36 |
(2) 8M x 36 |
96MB |
(2) 4M x 36 |
(2) 8M x 36 |
128MB |
(2) 8M x 36 |
(2) 8M x 36 |
DRAM TERMINATOR CONFIGURATION | ||
Type |
RN11 |
RN12 |
Single sided |
Installed |
Not installed |
Double sided |
Not installed |
Installed |
CACHE CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
TAG |
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 8K x 8 |
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 16K x 8 |
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
1MB |
(4) 128K x 8 |
(4) 128K x 8 |
(1) 32K x 8 |
CACHE JUMPER CONFIGURATION | ||
Size |
JP11 |
JP12 |
256KB |
pins 2 & 3 closed |
pins 2 & 3 closed |
512KB |
pins 1 & 2 closed |
pins 2 & 3 closed |
1MB |
pins 1 & 2 closed |
pins 1 & 2 closed |
CPU SPEED CONFIGURATION | |||
Speed |
JP13 |
JP14 |
JP15 |
60MHz |
pins 1 & 2 closed |
pins 2 & 3 closed |
pins 1 & 2 closed |
66MHz |
pins 2 & 3 closed |
pins 1 & 2 closed |
pins 2 & 3 closed |
DMA CHANNEL CONFIGURATION | ||
DMA |
JP1 |
JP2 |
Channel 1 |
pins 1 & 2 closed |
pins 1 & 2 closed |
Channel 3 |
pins 2 & 3 closed |
pins 2 & 3 closed |
