Processor	80486SX/80486DX2/Pentium Overdrive
Processor Speed	33/66(internal)MHz
Chip Set	OPTI
Max. Onboard DRAM	256MB
Cache	256KB
BIOS	AMI
Dimensions	330mm x 218mm
I/O Options	32-bit external cache card, 32-bit VESA local bus slots (2), floppy drive interface, IDE interface, parallel port, PS/2 mouse port, serial ports (2)
NPU Options	None

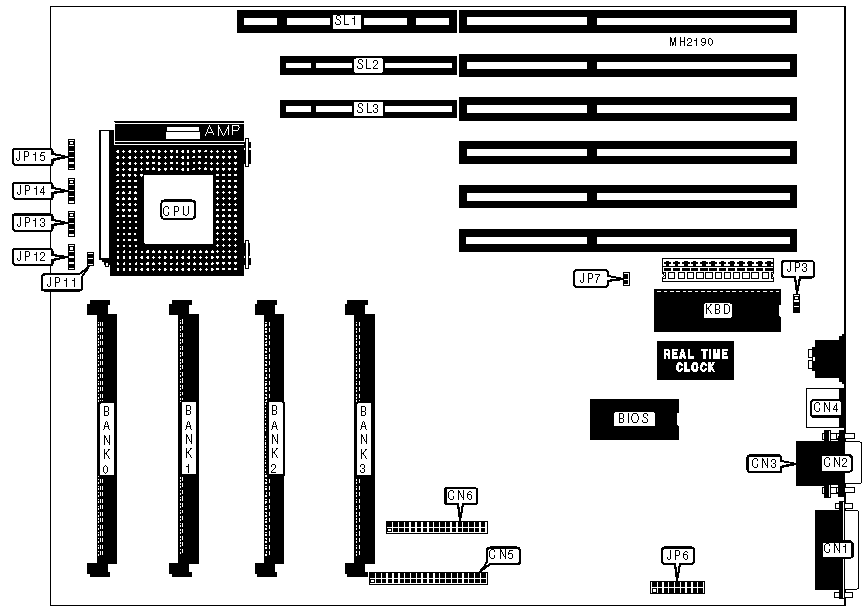

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	Speaker	JP12
Serial port 1	CN2	Chassis fan power	JP13
Serial port 2	CN3	IDE interface LED	JP14
PS/2 mouse port	CN4	Front panel connector	JP15
IDE interface	CN5	32-bit external cache card	SL1
Floppy drive interface	CN6	32-bit VESA local bus slots	SL2 & SL3
Reset switch	JP11

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	Factory configured - do not alter	JP3	Open
»	Factory configured - do not alter	JP6	Open
»	CMOS memory normal operation	JP7	Open
	CMOS memory clear	JP7	Closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
4MB	(1) 1M x 36	NONE	NONE	NONE
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	NONE
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 4M x 36	NONE	NONE	NONE
20MB	(1) 1M x 36	(1) 4M x 36	NONE	NONE
24MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	NONE
24MB	(1) 1M x 36	(1) 4M x 36	(1) 1M x 36	NONE
28MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	(1) 1M x 36
28MB	(1) 1M x 36	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36
32MB	(1) 4M x 36	(1) 4M x 36	NONE	NONE
36MB	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36	NONE
36MB	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36	NONE
40MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36
40MB	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36
40MB	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36	(1) 1M x 36
48MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	NONE
52MB	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36
52MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 1M x 36
64MB	(1) 16M x 36	NONE	NONE	NONE
128MB	(1) 16M x 36	(1) 16M x 36	NONE	NONE
192MB	(1) 16M x 36	(1) 16M x 36	(1) 16M x 36	NONE
256MB	(1) 16M x 36	(1) 16M x 36	(1) 16M x 36	(1) 16M x 36
