SILICON STAR INTERNATIONAL, INC.
486 VESA AG4
Processor |
CX486SX/80486SX/80487SX/CX486DX/80486DX/80486DX2/Pentium Overdrive |
Processor Speed |
20/25/33/40(internal)/50(internal)/50/66(internal)/75(internal)/83(internal)/ 100(internal)MHz |
Chip Set |
SIS |
Max. Onboard DRAM |
128MB |
Cache |
128/256/512KB |
BIOS |
AMI/Award |
Dimensions |
260mm x 220mm |
I/O Options |
32-bit VESA local bus slots (3), green PC connector |
NPU Options |
None |

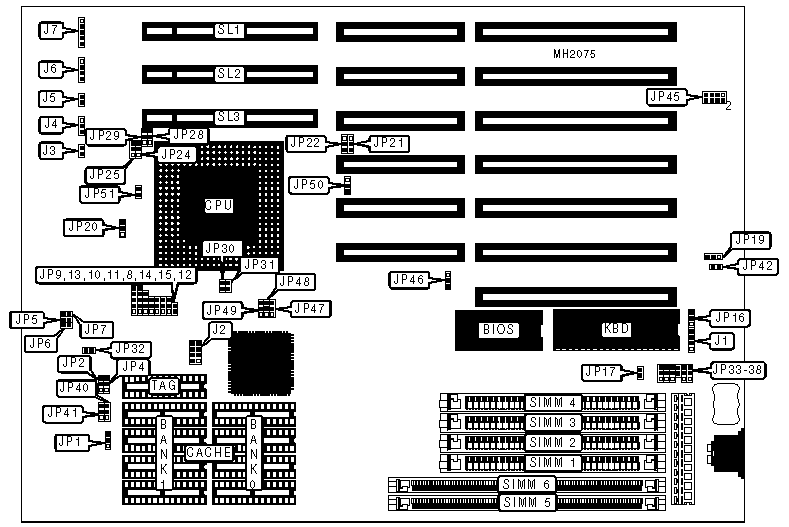

CONNECTIONS | |||
Purpose |
Location |
Purpose |
Location |
External battery |
J1 |
Reset switch |
J6 |
Turbo switch |
J3 |
Power LED & keylock |
J7 |
Turbo LED |
J4 |
Green PC connector |
JP45 |
Speaker |
J5 |
32-bit VESA Local bus slots |
SL1 - SL3 |
USER CONFIGURABLE SETTINGS | |||
Function |
Jumper |
Position | |
» |
Factory configured - do not alter |
J2 |
Open |
» |
Turbo mode enabled |
J3 |
pins 2 & 3 closed |
Turbo mode disabled |
J3 |
pins 1 & 2 closed | |
» |
CMOS memory normal operation |
JP16 |
pins 1 & 2 closed |
CMOS memory clear |
JP16 |
pins 2 & 3 closed | |
» |
Monitor type select color |
JP17 |
Closed |
Monitor type select monochrome |
JP17 |
Open | |
» |
Enter break switch |
JP19 |
pins 1 & 2 closed |
Leave break switch |
JP19 |
pins 2 & 3 closed | |
» |
Factory configured - do not alter |
JP23 |
pins 1 & 2 closed |
» |
Suspend mode disabled |
JP26 |
Open |
Suspend mode enabled |
JP26 |
Closed | |
» |
Factory configured - do not alter |
JP30 |
Open |
» |
Factory configured - do not alter |
JP31 |
Open |
» |
Factory configured - do not alter |
JP42 |
Closed |
Note: The location of JP23 & JP26 is unidentified. |
DRAM CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
1MB |
NONE |
NONE |
(1) 256K x 36 |
1MB |
(4) 256K x 9 |
NONE |
NONE |
2MB |
NONE |
(1) 256K x 36 |
(1) 256K x 36 |
2MB |
NONE |
NONE |
(1) 512K x 36 |
2MB |
(4) 256K x 9 |
NONE |
(1) 256K x 36 |
4MB |
NONE |
NONE |
(1) 1M x 36 |
4MB |
NONE |
(1) 512K x 36 |
(1) 512K x 36 |
4MB |
(4) 1M x 9 |
NONE |
NONE |
5MB |
NONE |
(1) 1M x 36 |
(1) 256K x 36 |
5MB |
(4) 256K x 9 |
NONE |
(1) 1M x 36 |
6MB |
(4) 1M x 9 |
(1) 256K x 36 |
(1) 256K x 36 |
6MB |
NONE |
(1) 1M x 36 |
(1) 512K x 36 |
6MB |
(4) 256K x 9 |
(1) 1M x 36 |
(1) 256K x 36 |
8MB |
(4) 1M x 9 |
(1) 512K x 36 |
(1) 512K x 36 |
8MB |
NONE |
(1) 1M x 36 |
(1) 1M x 36 |
8MB |
NONE |
NONE |
(1) 2M x 36 |
8MB |
(4) 1M x 9 |
NONE |
(1) 1M x 36 |
10MB |
(4) 256K x 9 |
(1) 2M x 36 |
(1) 256K x 36 |
12MB |
(4) 1M x 9 |
NONE |
(1) 2M x 36 |
12MB |
(4) 1M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
16MB |
NONE |
(1) 2M x 36 |
(1) 2M x 36 |
16MB |
NONE |
NONE |
(1) 4M x 36 |
16MB |
(4) 1M x 9 |
(1) 2M x 36 |
(1) 1M x 36 |
16MB |
(4) 1M x 9 |
(1) 1M x 36 |
(1) 2M x 36 |
17MB |
NONE |
(1) 4M x 36 |
(1) 256K x 36 |
17MB |
(4) 256K x 9 |
NONE |
(1) 4M x 36 |
DRAM CONFIGURATION (CON’T) | |||
Size |
Bank 0 |
Bank 1 |
Bank 2 |
18MB |
(4) 4M x 9 |
(1) 256K x 36 |
(1) 256K x 36 |
18MB |
NONE |
(1) 4M x 36 |
(1) 512K x 36 |
18MB |
(4) 256K x 9 |
(1) 4M x 36 |
(1) 256K x 36 |
20MB |
(4) 4M x 9 |
(1) 512K x 36 |
(1) 512K x 36 |
20MB |
NONE |
(1) 4M x 36 |
(1) 1M x 36 |
24MB |
(4) 4M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
24MB |
(4) 1M x 9 |
(1) 4M x 36 |
(1) 1M x 36 |
32MB |
NONE |
(1) 4M x 36 |
(1) 4M x 36 |
32MB |
NONE |
NONE |
(1) 8M x 36 |
32MB |
(4) 4M x 9 |
NONE |
(1) 4M x 36 |
36MB |
(4) 4M x 9 |
(1) 4M x 36 |
(1) 1M x 36 |
36MB |
NONE |
(1) 8M x 36 |
(1) 1M x 36 |
36MB |
(4) 1M x 9 |
NONE |
(1) 8M x 36 |
36MB |
(4) 1M x 9 |
(1) 4M x 36 |
(1) 4M x 36 |
40MB |
(4) 1M x 9 |
(1) 8M x 36 |
(1) 1M x 36 |
48MB |
NONE |
(1) 8M x 36 |
(1) 4M x 36 |
48MB |
(4) 4M x 9 |
NONE |
(1) 8M x 36 |
48MB |
(4) 4M x 9 |
(1) 4M x 36 |
(1) 4M x 36 |
64MB |
NONE |
(1) 8M x 36 |
(1) 8M x 36 |
64MB |
NONE |
NONE |
(1) 16M x 36 |
64MB |
(4) 4M x 9 |
(1) 4M x 36 |
(1) 8M x 36 |
64MB |
(4) 16M x 9 |
NONE |
NONE |
64MB |
(4) 4M x 9 |
(1) 8M x 36 |
(1) 4M x 36 |
64MB |
(4) 16M x 9 |
NONE |
NONE |
65MB |
NONE |
(1) 16M x 36 |
(1) 256K x 36 |
65MB |
(4) 256K x 9 |
NONE |
(1) 16M x 36 |
68MB |
NONE |
(1) 16M x 36 |
(1) 1M x 36 |
72MB |
(4) 16M x 9 |
(1) 1M x 36 |
(1) 1M x 36 |
72MB |
(4) 1M x 9 |
(1) 16M x 36 |
(1) 1M x 36 |
80MB |
NONE |
(1) 16M x 36 |
(1) 4M x 36 |
80MB |
(4) 4M x 9 |
NONE |
(1) 16M x 36 |
96MB |
(4) 16M x 9 |
(1) 4M x 36 |
(1) 4M x 36 |
128MB |
NONE |
(1) 16M x 36 |
(1) 16M x 36 |
128MB |
(4) 16M x 9 |
NONE |
(1) 16M x 36 |
DRAM JUMPER CONFIGURATION | |||||
Bank 0 |
Bank 1 |
Bank 2 |
JP33 |
JP34 |
JP35 |
SIMM 1-4 |
SIMM 6 (S) |
SIMM 5 (S) |
Open |
1 & 2 |
Open |
SIMM 1-4 |
SIMM 6 (D) |
SIMM 5 (S) |
Open |
1 & 2 |
Closed |
SIMM 1-4 |
SIMM 6 (S) |
SIMM 5 (D) |
2 & 3 |
1 & 2 |
Open |
SIMM 6 (S) |
SIMM 5 (S) |
SIMM 1-4 |
1 & 2 |
2 & 3 |
Open |
SIMM 6 (D) |
SIMM 5 (D) |
SIMM 1-4 |
1 & 2 |
2 & 3 |
Open |
SIMM 6 (D) |
SIMM 5 (S) |
NONE |
1 & 2 |
2 & 3 |
Open |
SIMM 6 (D) |
SIMM 5 (D) |
SIMM 1-4 |
1 & 2 |
2 & 3 |
Open |
Note:Pins designated should be in the closed positon. |
DRAM JUMPER CONFIGURATION (CON’T) | |||||
Bank 0 |
Bank 1 |
Bank 2 |
JP36 |
JP37 |
JP38 |
SIMM 1-4 |
SIMM 6 (S) |
SIMM 5 (S) |
2 & 3 |
Open |
2 & 3 |
SIMM 1-4 |
SIMM 6 (D) |
SIMM 5 (S) |
2 & 3 |
2 & 3 |
Open |
SIMM 1-4 |
SIMM 6 (S) |
SIMM 5 (D) |
2 & 3 |
Open |
2 & 3 |
SIMM 6 (S) |
SIMM 5 (S) |
SIMM 1-4 |
1 & 2 |
1 & 2 |
1 & 2 |
SIMM 6 (D) |
SIMM 5 (D) |
SIMM 1-4 |
1 & 2 |
1 & 2 |
1 & 2 |
SIMM 6 (D) |
SIMM 5 (S) |
NONE |
1 & 2 |
1 & 2 |
1 & 2 |
SIMM 6 (D) |
SIMM 5 (D) |
SIMM 1-4 |
1 & 2 |
1 & 2 |
1 & 2 |
Note:Pins designated should be in the closed positon. |
CACHE CONFIGURATION | |||
Size |
Bank 0 |
Bank 1 |
TAG |
128KB |
(4) 32K x 8 |
NONE |
(1) 8K x 8 |
256KB |
(4) 32K x 8 |
(4) 32K x 8 |
(1) 32K x 8 |
256KB |
(4) 64K x 8 |
NONE |
(1) 32K x 8 |
512KB |
(4) 64K x 8 |
(4) 64K x 8 |
(1) 32K x 8 |
512KB |
(4) 128K x 8 |
NONE |
(1) 32K x 8 |
CACHE JUMPER CONFIGURATION | |||||
Size |
JP1 |
JP2 |
JP4 |
JP40 |
JP41 |
128KB |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
1 & 2 |
256KB |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
1 & 2 |
256KB |
1 & 2 |
2 & 3 |
1 & 2 |
1 & 2 |
1 & 2 |
512KB |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
2 & 3 |
512KB |
1 & 2 |
2 & 3 |
2 & 3 |
1 & 2 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU TYPE CONFIGURATION | ||||||||
Type |
JP8 |
JP9 |
JP10 |
JP11 |
JP12 |
JP13 |
JP14 |
JP15 |
CX486SX |
2 & 3 |
Open |
2 & 3 |
Open |
2-3, 4-5 |
Open |
1-2, 3-4 |
2 & 3 |
486SX |
2 & 3 |
Open |
2 & 3 |
Open |
Open |
Open |
Open |
Open |
486SL |
1 & 2 |
Closed |
2 & 3 |
2 & 3 |
3 & 4 |
Open |
2 & 3 |
4 & 5 |
CX486DX |
1 & 2 |
Closed |
2 & 3 |
2 & 3 |
2 & 3 |
Open |
1-2, 3-4 |
2 & 3 |
486DX/DX2 |
1 & 2 |
Closed |
2 & 3 |
2 & 3 |
Open |
Open |
Open |
Open |
486DX4 |
1 & 2 |
Closed |
2 & 3 |
2 & 3 |
3 & 4 |
Open |
2 & 3 |
4 & 5 |
Note: Pins designated should be in the closed position. |
CPU TYPE CONFIGURATION (CON’T) | |||||||
Type |
JP21 |
JP22 |
JP24 |
JP25 |
JP46 |
JP48 |
JP50 |
CX486SX |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
2 & 3 |
486SX |
2 & 3 |
1 & 2 |
1 & 2 |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
486SL |
2 & 3 |
1 & 2 |
Open |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
CX486DX |
1 & 2 |
2 & 3 |
2 & 3 |
2 & 3 |
1 & 2 |
2 & 3 |
2 & 3 |
486DX/DX2 |
2 & 3 |
1 & 2 |
1 & 2 |
Open |
2 & 3 |
2 & 3 |
2 & 3 |
486DX4 |
2 & 3 |
1 & 2 |
Open |
Open |
2 & 3 |
1 & 2 |
1 & 2 |
Note: Pins designated should be in the closed position. |
CPU SPEED CONFIGURATION | ||||||||
Speed |
JP5 |
JP6 |
JP7 |
JP20 |
JP32 |
JP47 |
JP49 |
JP51 |
20MHz |
Closed |
Open |
Closed |
1 & 2 |
Closed |
Open |
Open |
Open |
25MHz |
Closed |
Closed |
Open |
1 & 2 |
Closed |
Open |
Open |
Open |
33MHz |
Open |
Closed |
Closed |
1 & 2 |
Closed |
Open |
Open |
Open |
40MHz |
Closed |
Open |
Open |
2 & 3 |
Closed |
Open |
Open |
Open |
50iMHz |
Closed |
Closed |
Open |
1 & 2 |
Closed |
Open |
Open |
Open |
50MHz |
Open |
Open |
Closed |
1 & 2 |
Closed |
Open |
Open |
Open |
66iMHz |
Open |
Closed |
Closed |
1 & 2 |
Closed |
Open |
Open |
Open |
Note: Pins designated should be in the closed position. |
CPU SPEED CONFIGURATION (DX4 ONLY) | ||||||||
Speed |
JP5 |
JP6 |
JP7 |
JP20 |
JP32 |
JP47 |
JP49 |
JP51 |
25/75MHz |
Closed |
Closed |
Open |
1 & 2 |
Open |
2 & 3 |
1 & 2 |
Open |
33/83MHz |
Open |
Closed |
Closed |
1 & 2 |
Open |
2 & 3 |
Open |
Closed |
33/100MHz |
Open |
Closed |
Closed |
1 & 2 |
Open |
1 & 2 |
1 & 2 |
Open |
50/100MHz |
Open |
Open |
Closed |
1 & 2 |
Open |
1 & 2 |
2 & 3 |
Open |
Note: Pins designated should be in the closed position. |
VESA WAIT STATE CONFIGURATION | |
Wait states |
JP28 |
0 wait states |
pins 1 & 2 closed |
1 wait state |
pins 2 & 3 closed |
VESA BUS SPEED CONFIGURATION | |
CPU speed |
JP29 |
< = 33MHz |
pins 1 & 2 closed |
> 33MHz |
pins 2 & 3 closed |
GREEN PC CONFIGURATION | |
Description |
JP45 |
Control video HSYNC |
pin 1 |
Ground |
pin 2 |
Control video VSYNC |
pin 3 |
Ground |
pin 4 |
Control ENVIDEO |
pin 5 |
Ground |
pin 6 |
Monitor AC power |
pin 7 |
Ground |
pin 8 |
