AUSTIN COMPUTER SYSTEMS

486-33I WBC

Processor

80486SX/80486DX

Processor Speed

20/25/33MHz

Chip Set

OPTI

Max. Onboard DRAM

32MB

Cache

64/256KB

BIOS

AMI

Dimensions

330mm x 218mm

I/O Options

Floppy drive interface, IDE interface, parallel port, serial ports (2)

NPU Options

4167

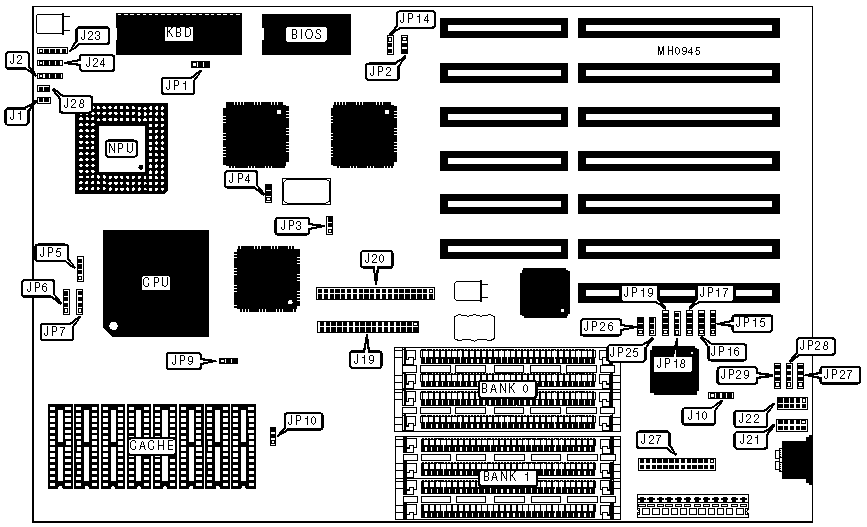

CONNECTIONS

Purpose

Location

Purpose

Location

Reset switch

J1

Serial port 1

J21

Turbo LED

J2 pins 1 & 2

Serial port 2

J22

Turbo switch

J2 pins 3 & 4

Power LED & keylock

J23

External battery

J10

Speaker

J24

Floppy interface

J19

Parallel port

J27

IDE interface

J20

IDE interface LED

J28

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

Monitor type select color

JP1

pins 1 & 2 closed



Monitor type select monochrome

JP1

pins 2 & 3 closed

»

CMOS memory normal operation

JP2

pins 1 & 2 closed



CMOS memory clear

JP2

pins 2 & 3 closed

»

Factory configured - do not alter

JP3

pins 1 & 2 closed

»

System clock speed select OSC/1

JP4

pins 1 & 2 closed



System clock speed select OSC/2

JP4

pins 2 & 3 closed

»

Real time clock normal operation

JP14

pins 1 & 2 closed



Real time clock reset

JP14

pins 2 & 3 closed

»

IRQ4 select serial port 1

JP15

pins 2 & 3 closed



IRQ4 select serial port 2

JP15

pins 1 & 2 closed



IRQ4 disabled

JP15

pins 3 & 4 closed



IRQ3 select serial port 1

JP16

pins 2 & 3 closed

»

IRQ3 select serial port 2

JP16

pins 1 & 2 closed



IRQ3 disabled

JP16

pins 3 & 4 closed



IRQ9 select serial port 1

JP17

pins 2 & 3 closed



IRQ9 select serial port 2

JP17

pins 1 & 2 closed

»

IRQ9 disabled

JP17

pins 3 & 4 closed



IRQ5 select serial port 1

JP18

pins 2 & 3 closed



IRQ5 select serial port 2

JP18

pins 1 & 2 closed

»

IRQ5 disabled

JP18

pins 3 & 4 closed

»

Parallel port IRQ select IRQ7

JP19

pins 1 & 2 closed



Parallel port IRQ select IRQ5

JP19

pins 2 & 3 closed



Parallel port IRQ select no interrupt

JP19

pins 3 & 4 closed

»

IDE interface enabled

JP25

pins 1 & 2 closed



IDE interface disabled

JP25

pins 2 & 3 closed

»

Floppy interface enabled

JP26

pins 1 & 2 closed



Floppy interface disabled

JP26

pins 2 & 3 closed

»

Serial port 1 select COM1

JP27

pins 1 & 2 closed



Serial port 1 select COM3

JP27

pins 2 & 3 closed



Serial port 1 disabled

JP27

pins 3 & 4 closed

»

Serial port 2 select COM2

JP28

pins 1 & 2 closed



Serial port 2 select COM4

JP28

pins 2 & 3 closed



Serial port 2 disabled

JP28

pins 3 & 4 closed

»

Parallel port select LPT1

JP29

pins 1 & 2 closed



Parallel port select LPT2

JP29

pins 2 & 3 closed



Parallel port disabled

JP29

pins 3 & 4 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

1MB

(4) 256K x 9

NONE

2MB

(4) 256K x 9

(4) 256K x 9

4MB

(4) 1M x 9

NONE

5MB

(4) 256K x 9

(4) 1M x 9

8MB

(4) 1M x 9

(4) 1M x 9

16MB

(4) 4M x 9

NONE

20MB

(4) 1M x 9

(4) 4M x 9

32MB

(4) 4M x 9

(4) 4M x 9

CACHE CONFIGURATION

Size

Bank 0

64KB

(8) 8K x 8

256KB

(8) 32K x 8

CACHE JUMPER CONFIGURATION

Size

JP9

JP10

64KB

pins 2 & 3 closed

pins 2 & 3 closed

256KB

pins 1 & 2 closed

pins 1 & 2 closed

CPU TYPE CONFIGURATION

Type

JP5

JP6

JP7

80486SX

pins 3 & 4 closed

pins 3 & 4 closed

pins 3 & 4 closed

80487SX

pins 2 & 3 closed

pins 2 & 3 closed

pins 2 & 3 closed

80486DX

pins 1 & 2 closed

pins 1 & 2 closed

pins 1 & 2 closed
