ADVANCED LOGIC RESEARCH, INC.

FLYER 32LCT

Processor

80486SX/80486DX/80486DX2

Processor Speed

25/33/50MHz

Chip Set

C & T

Max. Onboard DRAM

64MB

Cache

256KB

BIOS

Phoenix

Dimensions

335mm x 311mm

I/O Options

Floppy drive interface, IDE interface,parallel port, PS/2 mouse port, proprietary CPU module slot, proprietary cache module slot,serial ports (2), VGA port

NPU Options

None

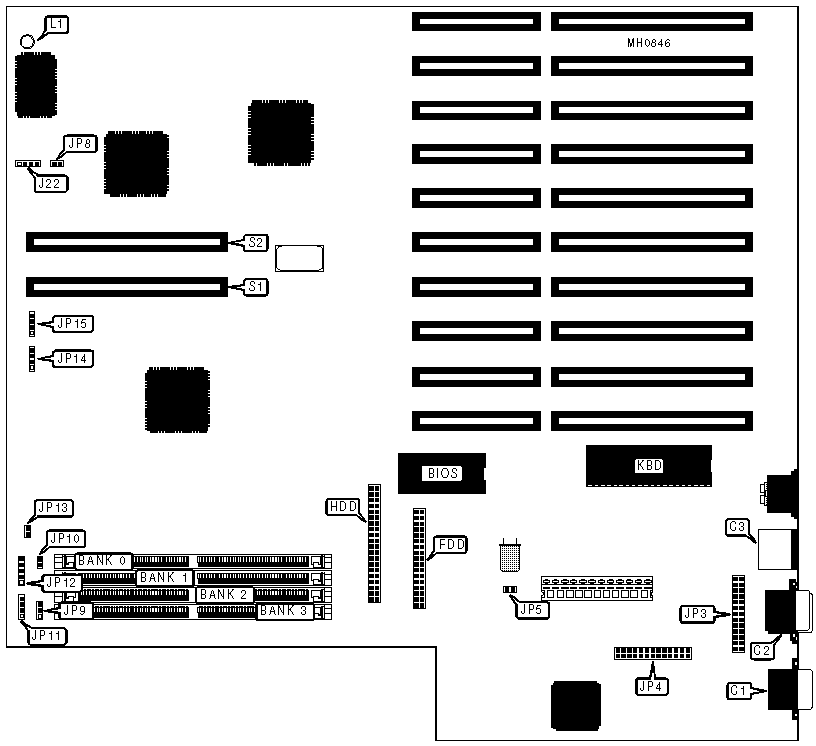

CONNECTIONS

Purpose

Location

Purpose

Location

VGA port

C1

Turbo LED

JP10

Serial ports (COM1&COM2)

C2

IDE interface LED

JP11

PS/2 bus mouse

C3

Power LED & keylock

JP12

Floppy drive interface

FDD

Reset switch

JP13

IDE interface

HDD

Cooling fan connector

JP14

External battery

J22

Speaker

JP15

Parallel port

JP3

On-board power LED

L1

VGA pass-through header

JP4

Proprietary CPU module

S1

Turbo switch

JP9

Proprietary cache module

S2

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

VGA port enabled

JP5

Closed



VGA port disabled

JP5

Open

»

CMOS memory normal operation

JP8

Open



CMOS memory clear

JP8

Closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

1MB

(1) 256K x 36

NONE

NONE

NONE

2MB

(1) 256K x 36

(1) 256K x 36

NONE

NONE

3MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

NONE

4MB

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

(1) 256K x 36

4MB

(1) 1M x 36

NONE

NONE

NONE

5MB

(1) 256K x 36

(1) 1M x 36

NONE

NONE

6MB

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

NONE

8MB

(1) 1M x 36

(1) 1M x 36

NONE

NONE

9MB

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

NONE

10MB

(1) 256K x 36

(1) 256K x 36

(1) 1M x 36

(1) 1M x 36

12MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

NONE

16MB

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

(1) 1M x 36

16MB

(1) 4M x 36

NONE

NONE

NONE

20MB

(1) 1M x 36

(1) 4M x 36

NONE

NONE

24MB

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

NONE

32MB

(1) 4M x 36

(1) 4M x 36

NONE

NONE

36MB

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

NONE

40MB

(1) 1M x 36

(1) 1M x 36

(1) 4M x 36

(1) 4M x 36

48MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

NONE

64MB

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

(1) 4M x 36

CACHE CONFIGURATION

Size

Location

256KB

Proprietary cache module (S2)
