BIOSTAR MICROTECH INTERNATIONAL CORPORATION

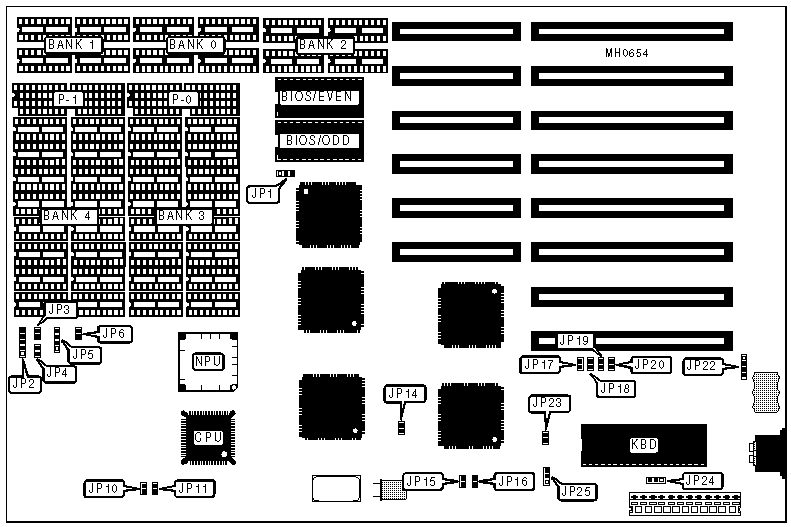

MB-1316V

Processor

80386SX

Processor Speed

16MHz

Chip Set

VLSI

Max. Onboard DRAM

4MB

Cache

None

BIOS

AMI/Award/Phoenix

Dimensions

330mm x 218mm

I/O Options

None

NPU Options

80387SX

CONNECTIONS

Purpose

Location

Purpose

Location

Power LED & keylock

JP2

Speaker

JP5

Reset switch

JP3

Turbo switch

JP6

Turbo LED

JP4

External battery

JP22

USER CONFIGURABLE SETTINGS

Function

Jumper

Position

»

BIOS type select 27256

JP1

pins 1 & 2 closed



BIOS type select 27128

JP1

pins 2 & 3 closed

»

Shadow BIOS enabled

JP14

Open



shadow BIOS disabled

JP14

Closed

»

Power good signal detect from power supply

JP24

pins 2 & 3 closed



Power good signal detect from board

JP24

pins 1 & 2 closed

»

Monitor type select color

JP25

pins 1 & 2 closed



Monitor type select monochrome

JP25

pins 2 & 3 closed

DRAM CONFIGURATION

Size

Bank 0

P-0

Bank 1

P-1

Bank 2

Bank 3

Bank 4

512KB

(4) 44256

(2) 41256

NONE

NONE

NONE

NONE

NONE

640KB

(4) 44256

(2) 41256

(4) 4464

(4) 4164

NONE

NONE

NONE

1MB

(4) 44256

(4) 41256

NONE

(4) 41256

(4) 44256

NONE

NONE

2MB

NONE

(2) 411000

NONE

NONE

NONE

(16) 411000

NONE

4MB

NONE

(2) 411000

NONE

(2) 411000

NONE

(16) 411000

(16) 411000

DRAM WAIT STATE CONFIGURATION

Wait states

JP10

JP11

0

Closed

Closed

1

Open

Open

DRAM JUMPER CONFIGURATION

Size

JP15

JP16

JP23

512KB

Closed

Open

Closed

640KB

Open

Closed

Closed

1MB

Open

Closed

Closed

2MB

Closed

Open

Open

4MB

Open

Closed

Open

KEYBOARD CONFIGURATION

Setting

JP17

JP18

JP19

JP20

Controller select pin 23

Closed

Open

Open

Open

Controller select pin 27

Open

Closed

Open

Open

Controller select pin 30

Open

Open

Closed

Open

Controller select pin 32

Open

Open

Open

Closed
