AREA ELECTRONICS SYSTEMS, INC.
MS-4106/MS-4106M/MS4106SX
|
Processor |
80486SX/80486DX |
|
Processor Speed |
20/25/33MHz |
|
Chip Set |
ETEQ |
|
Max. Onboard DRAM |
32MB |
|
Cache |
64/256KB |
|
BIOS |
AMI/Award/MR/Phoenix |
|
Dimensions |
330mm x 225mm |
|
I/O Options |
32-bit external memory card |
|
NPU Options |
4167 |
|

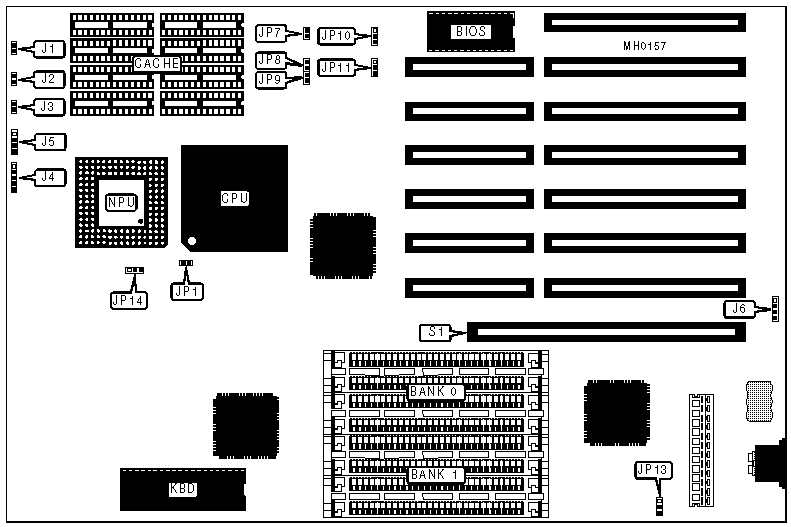

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
Turbo switch |
J1 |
Speaker |
J5 |
|
Turbo LED |
J2 |
External battery |
J6 |
|
Reset switch |
J3 |
32-bit external memory card |
S1 |
|
Power LED & keylock |
J4 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Jumper |
Position | |
| » |
Monitor type select monochrome |
JP13 |
pins 1 & 2 closed |
|
Monitor type select color |
JP13 |
pins 2 & 3 closed | |
|
DRAM CONFIGURATION | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256K x 9 |
NONE |
NONE |
NONE |
|
2MB |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
3MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
NONE |
|
4MB |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
4MB |
(4) 1M x 9 |
NONE |
NONE |
NONE |
|
5MB |
(4) 256K x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
8MB |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
9MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
NONE |
|
10MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
12MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
NONE |
|
13MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
|
16MB |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
16MB |
(4) 4M x 9 |
NONE |
NONE |
NONE |
|
17MB |
(4) 4M x 9 |
(4) 256K x 9 |
NONE |
NONE |
|
20MB |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
NONE |
|
32MB |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
NONE |
|
33MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
NONE |
|
34MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
(4) 256K x 9 |
|
36MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
NONE |
|
37MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 256K x 9 |
|
40MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
(4) 1M x 9 |
|
48MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
NONE |
|
49MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 256K x 9 |
|
52MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 1M x 9 |
|
64MB |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
(4) 4M x 9 |
|
Note:Banks 2 & 3 are used when a 32-bit external memory card is installed at S1. | ||||
|
CACHE CONFIGURATION | |
|
Size |
Bank 0 |
|
64KB |
(8) 8K x 8 |
|
256KB |
(8) 32K x 8 |
|
CACHE JUMPER CONFIGURATION | |||||
|
Size |
JP7 |
JP8 |
JP9 |
JP10 |
JP11 |
|
64KB |
open |
open |
open |
pins 2 & 3 closed |
pins 2 & 3 closed |
|
256KB |
closed |
closed |
closed |
pins 1 & 2 closed |
pins 1 & 2 closed |
|
CPU TYPE CONFIGURATION | ||
|
Type |
JP1 |
JP14 |
|
80486SX |
Open |
Closed |
|
80486DX |
pins 1 & 2 closed |
pins 2 & 3 closed |
