UNIDENTIFIED

MAD16

Card Type

Sound card

Chip Set

Opti

Maximum Onboard Memory

Unidentified

I/O Options

Line in, Microphone in, Speaker out, line out, Audio in-CD-ROM (3), Game/MIDI port, CD-ROM interfaces (3)

Data Bus

16-bit ISA

Card Size

Half length, half height

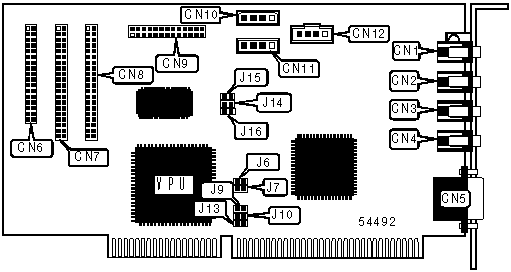

CONNECTIONS

Function

Label

Function

Label

Speaker out

CN1

CD-ROM interface (Mitsumi)

CN7

Line out

CN2

CD-ROM interface (Panasonic)

CN8

Line in

CN3

Wavetable connector

CN9

Microphone in

CN4

Audio in - CD-ROM (Panasonic)

CN10

Game/MIDI port

CN5

Audio in - CD-ROM (Mitsumi)

CN11

CD-ROM interface (Sony)

CN6

Audio in - CD-ROM (Sony)

CN12

BASE I/O ADDRESS SELECTION

Setting

J6

J7

320h

Closed

Closed

330h

Closed

Open

340h

Open

Open

360h

Open

Closed

HARD DRIVE SELECTION

Setting

J9

J10

J13

None

Open

Open

Open

Sony 31A

Closed

Open

Open

Mitsumi

Open

Closed

Open

Panasonic 562

Close

Open

Closed

OPL MODE SELECTION

Function

J14

J15

J16

OPL3

Closed

Closed

Closed

OPL4

Open

Open

Open
