Card Type	Sound card
Chip Set	Unidentified
I/O Options	CD-ROM interface, game/midi port, line in, microphone jack, volume control, speaker/line out, Audio in (3), wavetable
Data Bus	16-bit ISA
Card Size	Half-length, full-height card

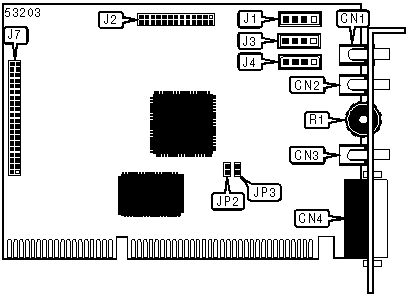

CONNECTIONS
Function	Label	Function	Label
Line in	CN1	Wavetable synthesizer connector	J2
Microphone jack	CN2	Audio in - CD-ROM (Mitsumi)	J3
Speaker/line out	CN3	Audio in - CD-ROM (Panasonic)	J4
Game/MIDI port	CN4	CD-ROM ATAPI interface	J7
Audio in - CD-ROM (Sony)	J1	Volume control	R1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Plug and play function disabled	JP2	Open
	Plug and play function enabled	JP2	Closed
»	PC Speaker disabled	JP3	Open
	PC Speaker enabled	JP3	Closed
