UNIDENTIFIED

SNB-C010

Card Type

Multi-I/O

Chipset Controller

Unidentified

I/O Options

Parallel port (1), Game port (1), Serial port (2), Floppy (1)

Maximum Dram

Unidentified

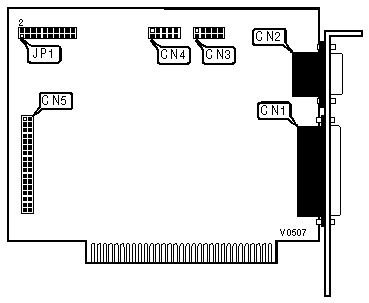

CONNECTIONS

Purpose

Location

Purpose

Location

25-pin parallel printer port

CN1

10-pin serial port

CN4

15-pin game port

CN2

34-pin floppy drive

CN5

10-pin serial port

CN3



GAME PORT SELECT

Setting

JP1

Enabled

Pins 1 & 2 closed

Disabled

Pins 1 & 2 open

PARALLEL PORT SELECT

Setting

JP1

LPT1

Pins 7 & 8 closed

LPT2

Pins 5 & 7 closed

Disable

All open

SERIAL PORT 1 SELECT

Setting

JP1

COM1

Pins 9 & 10, 13 & 14 closed

COM3

Pins 9 & 10, 11 & 13 closed

Disable

All open

SERIAL PORT 2 SELECT

Setting

JP1

COM2

Pins 15 & 16, 19 & 20 closed

COM4

Pins 15 & 16, 17 & 19 closed

Disable

All open

TIMER SELECT

Setting

JP1

TIM1

Pins 3 & 4 closed

TIM2

Pins 4 & 6 closed

Disable

All open
