UNIDENTIFIED

SERIAL/PARALLEL INTERFACE CARD

Card Type

Multi I/O card

Chipset/Controller

Unidentified

I/O Options

Parallel port, serial ports (2)

Maximum DRAM

N/A

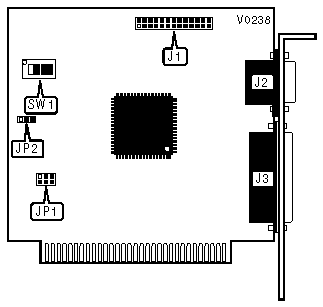

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 2

J1

Parallel port

J3

Serial port 1

J2





SERIAL PORT CONFIGURATION

Port 1 (J2)

SW1/1

SW1/3

»

COM1

On

Off



COM2

Off

On



Disabled

Off

Off

SERIAL PORT CONFIGURATION

Port 2 (J1)

SW1/1

SW1/3

»

COM1

On

Off



COM2

Off

On



Disabled

Off

Off

PARALLEL PORT CONFIGURATION

Port

LPT

SW1/2

JP2

»

Enabled

1

On

Pins 2 & 3 closed



Disabled

2

Off

Pins 1 & 2 closed

COM PORT CHANGE CONFIGURATION

Port

JP1

»

Normal

Pins 1 & 2, 4 & 5 closed



Change

Pins 2 & 3, 5 & 6 closed

Note: This jumper should be changed from the "Normal" setting if LPT is enabled. When JP1 is in "Change", COM1 and COM2 are reversed.

FACTORY CONFIGURED - DO NOT ALTER

Switch

Position

SW1/4

N/A
