UNIDENTIFIED

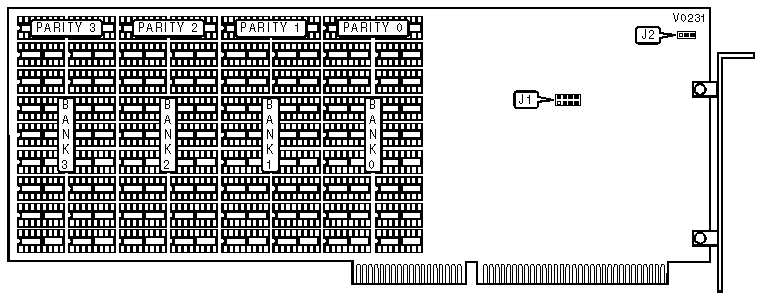

AT PLUS (DIP VERSION)

Card Type

Memory card

Chipset/Controller

N/A

I/O Options

N/A

Maximum DRAM

8MB

AT BOARD SELECTION

Number of AT PLUS Boards installed

J1

»

1

Pins 1 & 2 closed



2

Pins 3 & 4 closed



3

Pins 5 & 6 closed



4

Pins 7 & 8 closed

FACTORY CONFIGURED - DO NOT ALTER

Jumper

Position

J2

Pins 1 & 2 closed

DRAM CONFIGURATION

Size

Bank 0

Bank 1

Bank 2

Bank 3

2MB

(18) 411000

None

None

None

4MB

(18) 411000

(18) 411000

None

None

6MB

(18) 411000

(18) 411000

(18) 411000

None

8MB

(18) 411000

(18) 411000

(18) 411000

(18) 411000
