Card Type	Multi I/O card
Chipset/Controller	Unidentified
I/O Options	Parallel ports (2), serial ports (2)
Maximum DRAM	N/A

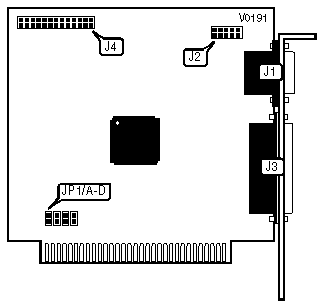

CONNECTIONS
Purpose	Location	Purpose	Location
Serial port 1	J1	Parallel port 1	J3
Serial port 2	J2	Parallel port 2	J4

SERIAL PORT CONFIGURATION
Port 1 (J1)		Port 2 (J2)	JP1/A	JP1/C
»	COM1	COM2	Open	Open
	COM1	Disabled	Open	Closed
	Disabled	COM2	Closed	Open

PARALLEL PORT CONFIGURATION
LPT	JP1/B	JP1/D
2	Open	Closed
3	Closed	Open
Note: LPT addresses will be 1 & 2 if your system does not already have a printer port.
