Card Type	Sound card
Chip Set	Opti
Maximum Onboard Memory	Unidentified
I/O Options	Game/MIDI port, IDE interface, audio in - CD-ROM (3), speaker out, line out, line in, microphone in
Data Bus	16-bit ISA
Card Size	Half-length, half-height card

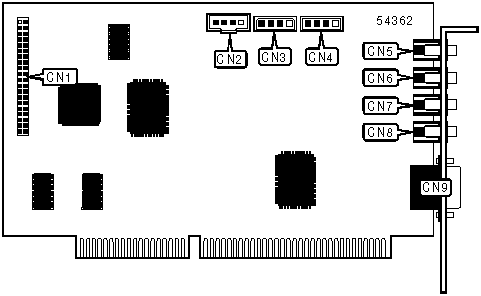

CONNECTIONS
Function	Label	Function	Label
IDE interface	CN1	Line out	CN6
Audio in - CD-ROM (Sony)	CN2	Line in	CN7
Audio in - CD-ROM (Panasonic)	CN3	Microphone in	CN8
Audio in - CD-ROM (Mitsubishi)	CN4	Game/MIDI port	CN9
Speaker out	CN5
