TMI MULTIMEDIA, INC.

GOLD MASTER GM 16BS

Card Type

Sound card

Chip Set

Unidentified

I/O Options

Game/MIDI port , waveblaster, Audio in - CD-ROM (3), line in, line out, microphone in

Data Bus

16-bit ISA

Card Size

Three-quarter length, full-height card

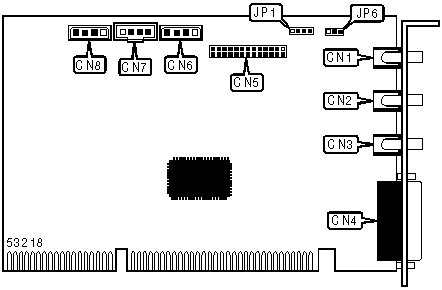

CONNECTIONS

Function

Label

Function

Label

Microphone jack

CN1

Waveblaster connector

CN5

Line in

CN2

Audio in CD-ROM (unidentified)

CN6

Line out

CN3

Audio in CD-ROM (unidentified)

CN7

Game/MIDI port

CN4

Audio in CD-ROM (unidentified)

CN8

MICROPHONE SELECT

Microphone type

JP1/pin 1 & 2

JP1/pin 3 & 4

Capacity type

Open

Open

Magnetic type

Closed

Closed

MICROPHONE INPUT SELECT

Type

JP6

Stereo input

Pins 2 & 3 Closed

Mono input

Pins 1 & 2 Closed
