TELEVIDEO SYSTEMS, INC.

TELESOUND 3D

Card Type

Sound card

Chip Set

Opti

I/O Options

CD-ROM interface, Game/Midi port, Wavetable, Microphone, Line in, Speaker/Line out, CD-Audio in

Data Bus

16-bit ISA

Card Size

Half-length, full-height card,

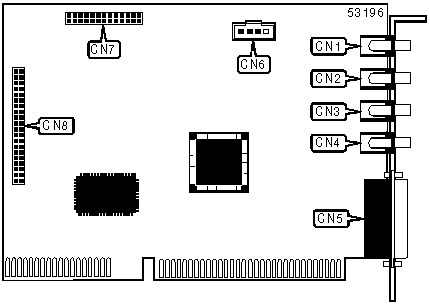

CONNECTIONS

Function

Label

Function

Label

Speaker/Line out

CN1

Game/MIDI port

CN5

Line in

CN2

Audio in - CD-ROM

CN6

Microphone in

CN3

Wavetable connector

CN7

Speaker out

CN4

CD-ROM ATAPI interface

CN8
