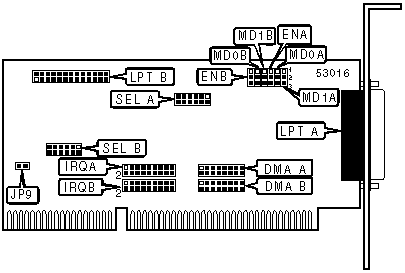

SIIG, INC.
PARALLEL PRO DUAL
|
Card Type |
Parallel card |
|
Chip Set |
Unidentified |
|
I/O Options |
Parallel ports (2) |
|
Data Bus |
16-bit ISA |
|
CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Parallel port A |
LPT A |
Parallel port B |
LPT B |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
Parallel pro dual enabled port A |
ENA |
Pins 1 & 2 closed |
|
Parallel pro dual disabled port A |
ENA |
Pins 2 & 3 closed | |
| » |
Parallel pro dual enabled port B |
ENB |
Pins 1 & 2 closed |
|
Parallel pro dual disabled port B |
ENB |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
JP9 |
Unidentified |
|
MODE CONFIGURATION PORT A | |||
|
Mode |
MD0A |
MD1A | |
|
SPP/BPP |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
EPP |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
ECP |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
| » |
ECP/EPP |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
MODE CONFIGURATION PORT B | |||
|
Mode |
MD0B |
MD1B | |
|
SPP/BPP |
Pins 1 & 2 closed |
Pins 1 & 2 closed | |
|
EPP |
Pins 2 & 3 closed |
Pins 1 & 2 closed | |
|
ECP |
Pins 1 & 2 closed |
Pins 2 & 3 closed | |
| » |
ECP/EPP |
Pins 2 & 3 closed |
Pins 2 & 3 closed |
|
DMA SELECTION PORT A | ||
|
Setting |
DMA A | |
|
DMA 0 |
Pins 1 & 2, 3 & 4 closed | |
|
DMA 1 |
Pins 5 & 6, 7 & 8 closed | |
|
DMA 2 |
Pins 9 & 10, 11 & 12 closed | |
| » |
DMA 3 |
Pins 13 & 14, 15 & 16 closed |
|
DMA SELECTION PORT B | ||
|
Setting |
DMA B | |
|
DMA 0 |
Pins 1 & 2, 3 & 4 closed | |
| » |
DMA 1 |
Pins 5 & 6, 7 & 8 closed |
|
DMA 2 |
Pins 9 & 10, 11 & 12 closed | |
|
DMA 3 |
Pins 13 & 14, 15 & 16 closed | |
|
BASE I/O ADDRESS SELECTION PORT A | ||
|
Address |
SEL A | |
|
3BCh |
Pins 1 & 2 closed | |
| » |
378h |
Pins 3 & 4 closed |
|
278h |
Pins 5 & 6 closed | |
|
268h |
Pins 7 & 8 closed | |
|
280h |
Pins 9 & 10 closed | |
|
288h |
Pins 11 & 12 closed | |
|
BASE I/O ADDRESS SELECTION PORT B | ||
|
Address |
SEL B | |
|
3BCh |
Pins 1 & 2 closed | |
|
378h |
Pins 3 & 4 closed | |
| » |
278h |
Pins 5 & 6 closed |
|
268h |
Pins 7 & 8 closed | |
|
280h |
Pins 9 & 10 closed | |
|
288h |
Pins 11 & 12 closed | |
|
PARALLEL PORT A INTERRUPT SELECTION | ||
|
IRQ |
IRQA/1-18 | |
|
9 |
Pins 1 & 2 closed | |
|
3 |
Pins 3 & 4 closed | |
|
4 |
Pins 5 & 6 closed | |
|
5 |
Pins 7 & 8 closed | |
| » |
7 |
Pins 9 & 10 closed |
|
10 |
Pins 11 & 12 closed | |
|
11 |
Pins 13 & 14 closed | |
|
12 |
Pins 15 & 16 closed | |
|
15 |
Pins 17 & 18 closed | |
|
PARALLEL PORT B INTERRUPT SELECTION | ||
|
IRQ |
IRQB/1-18 | |
|
9 |
Pins 1 & 2 closed | |
|
3 |
Pins 3 & 4 closed | |
|
4 |
Pins 5 & 6 closed | |
| » |
5 |
Pins 7 & 8 closed |
|
7 |
Pins 9 & 10 closed | |
|
10 |
Pins 11 & 12 closed | |
|
11 |
Pins 13 & 14 closed | |
|
12 |
Pins 15 & 16 closed | |
|
15 |
Pins 17 & 18 closed | |
