Card Type	Sound card
Chip Set	Mwave
Maximum Onboard Memory	N/A
I/O Options	CD-ROM audio (2), CD-ROM interface (2), game/MIDI port, line in, line out, microphone, telephone jack
Data Bus	16-bit ISA

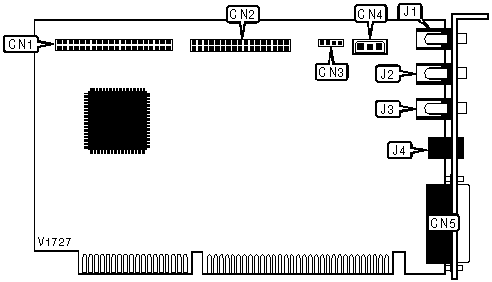

CONNECTIONS
Function	Label	Function	Label
Panasonic CD-ROM interface	CN1	Mic in	J1
Sony CD-ROM interface	CN2	Line in	J2
Sony CD - audio in	CN3	Line out	J3
Panasonic CD - audio in	CN4	Telephone jack	J4
Game/MIDI port	CN5
