Card Type	Sound card
Chipset Controller	OPTI QDSP 82C941, 82C930
I/O Options	CD-ROM audio (3), CD-ROM interface (3), game/MIDI port, IDE interface, line in, line out, microphone in, speaker out
Maximum DRAM	N/A

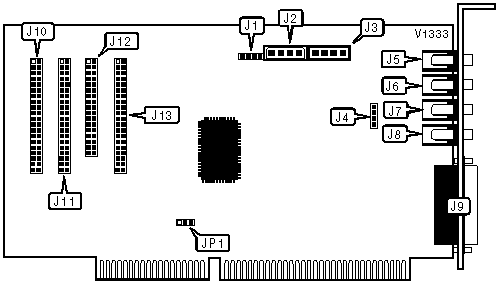

CONNECTIONS
Purpose	Location	Purpose	Location
Sony CD - audio in	J1	Mic in	J8
Panasonic CD - audio in	J2	Game/MIDI port	J9
Mitsumi CD - audio in	J3	Mitsumi CD-ROM interface	J10
Speaker out	J5	Panasonic CD-ROM interface	J11
Line out	J6	Sony CD-ROM interface	J12
Line in	J7	IDE interface	J13

CD-ROM INTERFACE CONFIGURATION
Setting		JP1
»	AT-BUS (Sony, Mitsumi, Panasonic CD-ROM drive)	Pins 2 & 3 closed
	IDE (IDE type CD-ROM drive)	Pins 1 & 2 closed

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
J4	N/A
