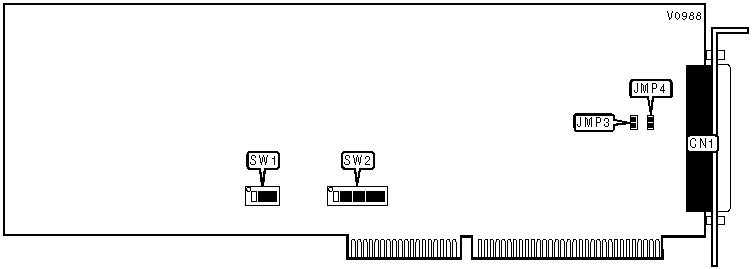

STAR GATE TECHNOLOGIES, INC.
ACL II+
|
Card Type |
Serial card |
|
Chipset Controller |
N/A |
|
I/O Options |
Serial ports(8 serial ports on external panel) |
|
Maximum DRAM |
N/A |
|
CONNECTIONS | |
|
Purpose |
Location |
|
62-pin serial interface connector |
CN1 |
|
EXTERNAL PANEL POWER SELECTION | ||
|
Panel |
JMP3 |
JMP4 |
|
EIA-232 |
Open |
Open |
|
EIA-422 & EIA-485 |
Closed |
Closed |
|
BASE I/O ADDRESS SELECTION | |||
|
Address |
SW1/1 |
SW1/2 | |
| » |
200h & 204h |
Off |
Off |
|
300h & 304h |
On |
Off | |
|
600h & 604h |
Off |
On | |
|
700h & 704h |
On |
On | |
|
EXTENDED MEMORY SELECTION | |
|
Setting |
SW1/3 |
|
Disabled |
Off |
|
Enabled |
On |
|
INTERRUPT SELECTION | |||||||||
|
IRQ |
SW2/1 |
SW2/2 |
SW2/3 |
SW2/4 |
SW2/5 |
SW2/6 |
SW2/7 |
SW2/8 | |
| » |
5 |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
3 |
On |
Off |
Off |
Off |
Off |
Off |
Off |
Off | |
|
4 |
Off |
On |
Off |
Off |
Off |
Off |
Off |
Off | |
|
9 |
Off |
Off |
Off |
On |
Off |
Off |
Off |
Off | |
|
10 |
Off |
Off |
Off |
Off |
On |
Off |
Off |
Off | |
|
11 |
Off |
Off |
Off |
Off |
Off |
On |
Off |
Off | |
|
12 |
Off |
Off |
Off |
Off |
Off |
Off |
On |
Off | |
|
15 |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
On | |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Switch |
Position |
|
SW1/4 |
Off |
