Card Type	Sound Card
Chipset/Controller	Motorola
I/O Options	Line in, line out, MIDI port
Maximum DRAM	8MB

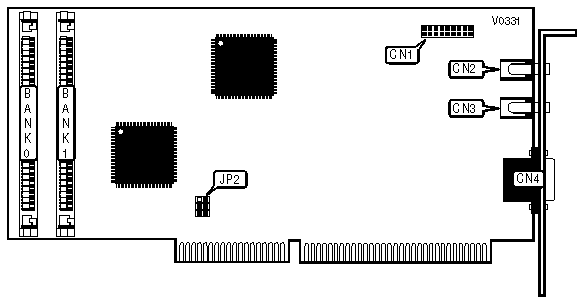

CONNECTIONS
Purpose	Location	Purpose	Location
Wave Blaster connector	CN1	Line out	CN3
Line in	CN2	MIDI port	CN4

I/O ADDRESS CONFIGURATION
Address		JP2
»	330h	All open
	338h	Pins 5 & 6 closed
	320h	Pins 3 & 4 closed
	300h	Pins 3 & 4, 5 & 6 closed
	290h	Pins 1 & 2 closed
	260h	Pins 1 & 2, 5 & 6 closed
	230h	Pins 1 & 2, 3 & 4 closed
	210h	Pins 1 & 2, 3 & 4 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(1) 256KB x 9	NONE
512KB	(1) 256KB x 9	(1) 256KB x 9
1.25MB	(1) 256KB x 9	(1) 1MB x 9
2MB	(1) 1M x 9	(1) 1M x 9
4.25MB	(1) 256KB x 9	(1) 4MB x 9
5MB	(1) 1MB x 9	(1) 4MB x 9
8MB	(1) 4MB x 9	(1) 4MB x 9
