Card Type	Sound card
Chip Set	Unidentified
I/O Options	Game/MIDI port, wavetable, CD - audio in (2), MPEG - audio in, speaker/line out (2), line in, microphone in
Data Bus	16-bit ISA

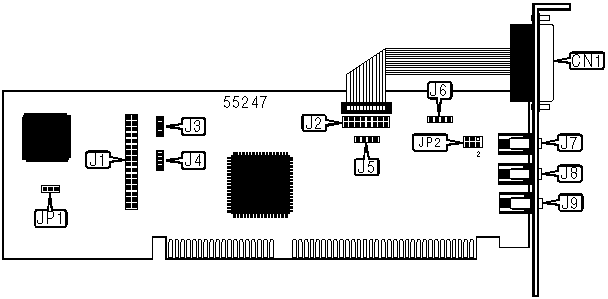

CONNECTIONS
Function	Label	Function	Label
Game/MIDI port - external	CN1	Audio in (MPEG)	J5
Wavetable	J1	Speaker/line out - internal	J6
Game/MIDI port - internal	J2	Speaker/line out - external	J7
CD - Audio in	J3	Line in	J8
CD - Audio in	J4	Microphone in	J9

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Factory configured - Do Not Alter	JP1	Unidentified
»	Speaker out	JP2	Pins 3 & 5, 4 & 6 closed
	Line out	JP2	Pins 1 & 3, 2 & 4 closed
