QUADRAM

JT FAX

Card Type

Fax

Chipset

Unidentified

Maximum Fax Rate

Unidentified

Data Bus

8-bit ISA

Fax Class

Unidentified

Fax Modulation

Unidentified

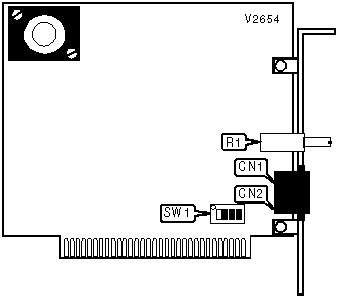

CONNECTIONS

Function

Label

Function

Label

Line out

CN1

Volume control

R1

Line in

CN2



USER CONFIGURABLE SETTINGS

Setting

Label

Position

»

Factory configured - do not alter

SW1/4

Off

BASE I/O ADDRESS

Setting

SW1/1

SW1/2

SW1/3



300h

On

On

On



304h

On

On

Off



308h

On

Off

On



30Ch

On

Off

Off



310h

Off

On

On

»

314h

Off

On

Off



318h

Off

Off

On



31Ch

Off

Off

Off
