PC CRAFT, INC.

DISK I/O CARD

Card Type

Multi-I/O card

Chip Set

Unidentified

Maximum Onboard Memory

None

I/O Options

Floppy drive interface, game port, parallel port, serial ports (2)

Data Bus

8-bit ISA

Floppy drives supported

Unidentified

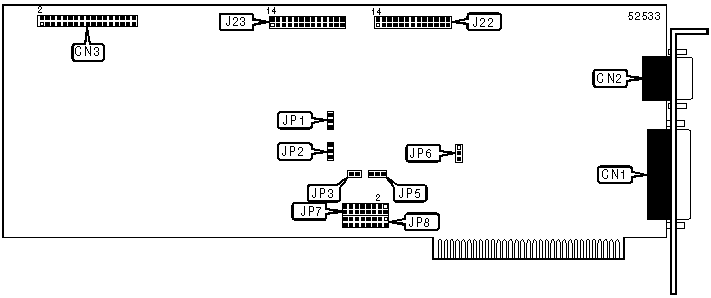

CONNECTIONS

Function

Label

Function

Label

Parallel port

CN1

Serial port 2

J23

Game port

CN2

Serial port 1

J24

Floppy drive interface

CN3



USER CONFIGURABLE SETTINGS

Function

Label

Position

Timer enabled

JP1

Unidentified

Timer disabled

JP1

Unidentified

Test enabled

JP3

Unidentified

Test disabled

JP3

Unidentified

Parallel port/Game enabled

JP5

Unidentified

Parallel port/Game disabled

JP5

Unidentified

Game 1 (200h) selected

JP6

Pins 1 & 2 closed

Game 2 (300h) selected

JP6

Pins 2 & 3 closed

Note: The location of pin 1 on JP1 is unidentified.

SERIAL PORT 1 & 2 SELECTION

Setting

JP2

Disabled

Open

Serial port 1 enabled

Pins 1 & 2 closed

Serial port 2 enabled

Pins 2 & 3 closed

Note:The location of pin 1 is unidentified.

PARALLEL PORT INTERRUPT SELECTION

IRQ

JP7

IRQ 2

Pins 1 & 2 closed

IRQ 3

Pins 2 & 3 closed

IRQ 4

Pins 4 & 5 closed

IRQ 5

Pins 5 & 6 closed

IRQ 6

Pins 7 & 8 closed

IRQ 7

Pins 8 & 9 closed

TIMER INTERRUPT SELECTION

IRQ

JP7

IRQ 2

Pins 10 & 11 closed

IRQ 3

Pins 11 & 12 closed

IRQ 4

Pins 13 & 14 closed

IRQ 5

Pins 14 & 15 closed

IRQ 6

Pins 16 & 17 closed

IRQ 7

Pins 17 & 18 closed

SERIAL PORT 1 INTERRUPT SELECTION

IRQ

JP8

IRQ 2

Pins 1 & 2 closed

IRQ 3

Pins 2 & 3 closed

IRQ 4

Pins 4 & 5 closed

IRQ 5

Pins 5 & 6 closed

IRQ 6

Pins 7 & 8 closed

IRQ 7

Pins 8 & 9 closed

SERIAL PORT 2 INTERRUPT SELECTION

IRQ

JP8

IRQ 2

Pins 10 & 11 closed

IRQ 3

Pins 11 & 12 closed

IRQ 4

Pins 13 & 14 closed

IRQ 5

Pins 14 & 15 closed

IRQ 6

Pins 16 & 17 closed

IRQ 7

Pins 17 & 18 closed
